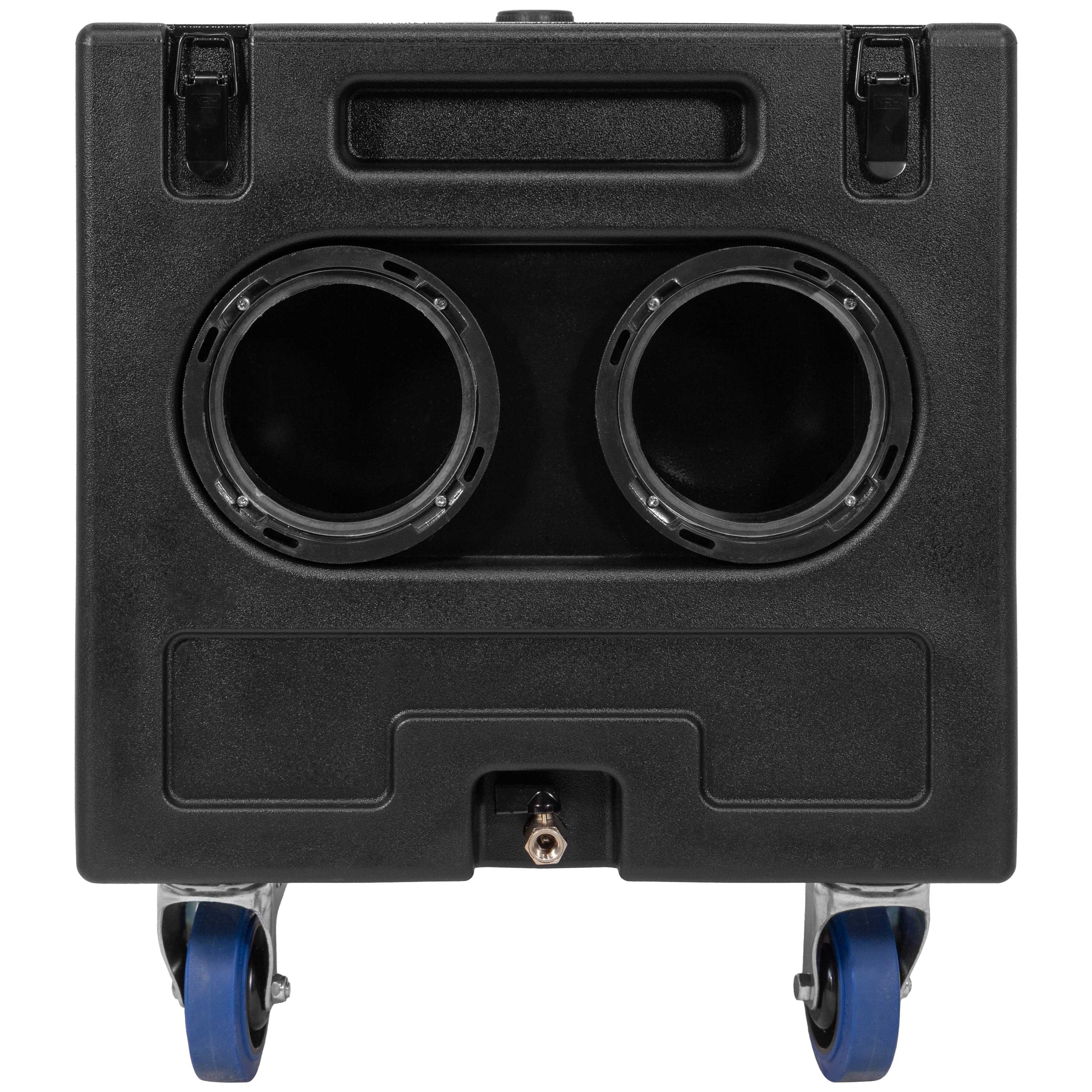

Evolite HeavyFog 4000P – Professional Low Fog Machine (4000W, No Ice Required)
Evolite HeavyFog 4000P – Professional Low Fog Machine (4000W, No Ice Required)
Overview

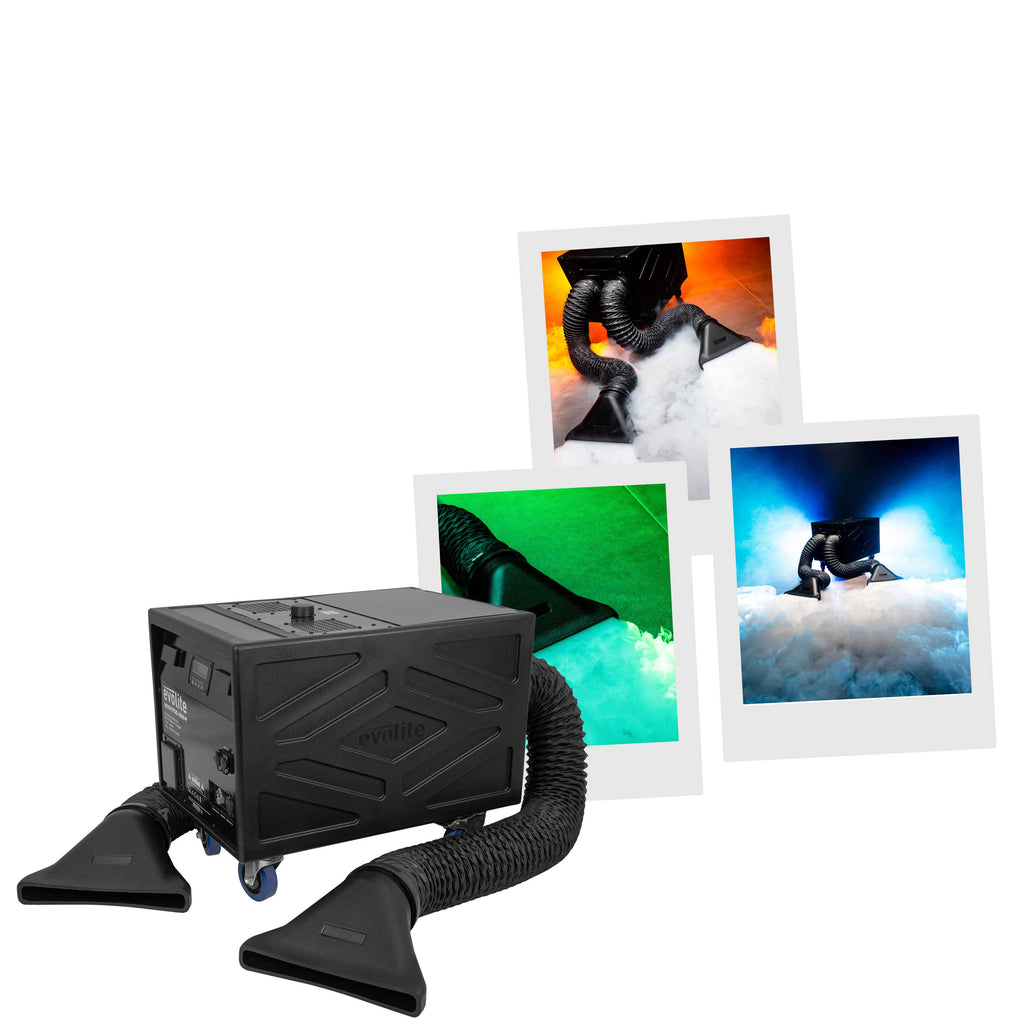

The Evolite HeavyFog 4000P is a powerful, professional low fog machine designed to create thick, ground-hugging fog without the need for dry ice. Built for impressive stage and event effects, it produces dense fog that stays close to the floor—perfect for weddings, concerts, theatre productions, clubs, and large venues. With a high-output 4000W heating element, continuous fog generation, and coverage of up to 500 m², the HeavyFog 4000P delivers dramatic “cloud floor” visuals on demand using only water and Lowfog heavy fog fluid.
Design and Build Quality

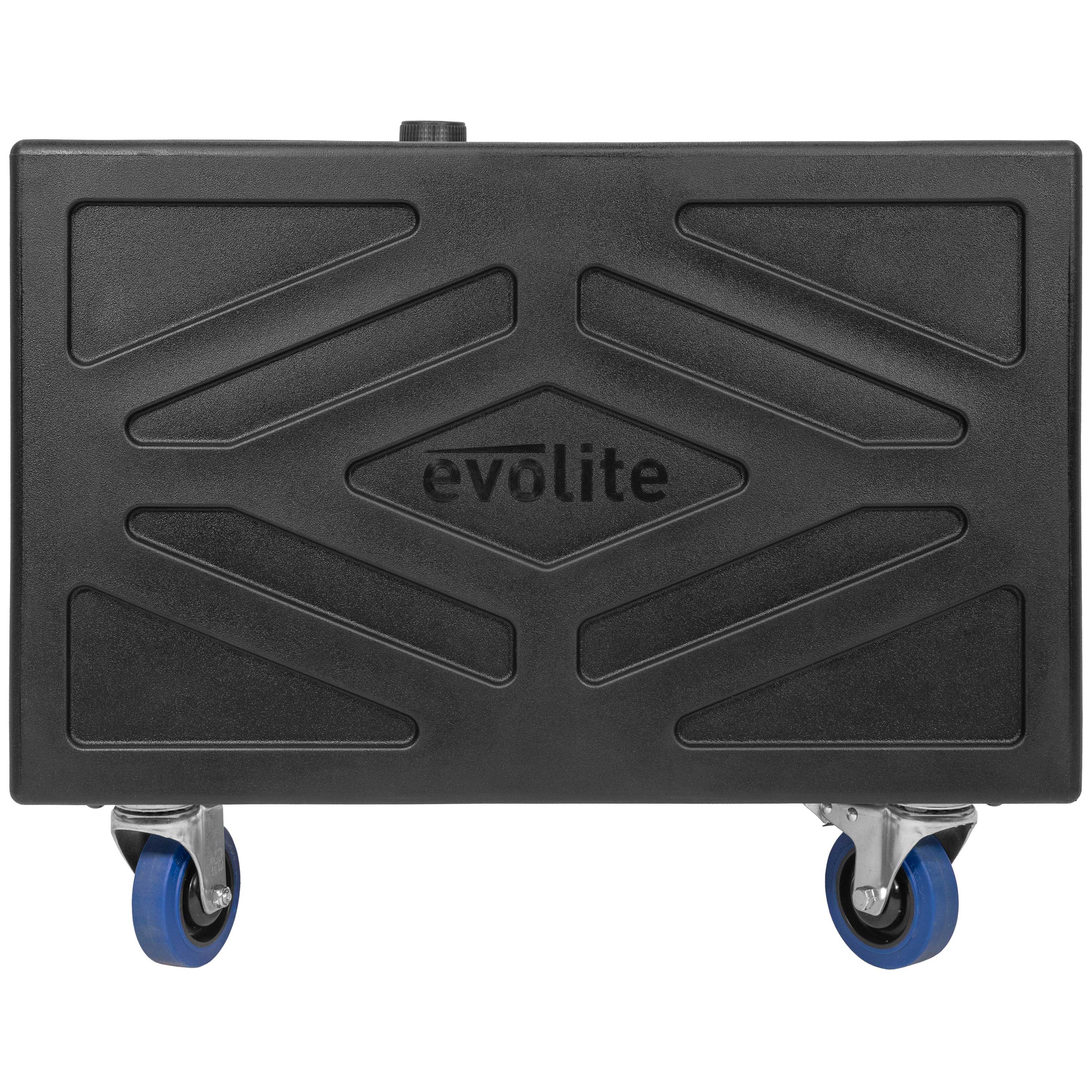

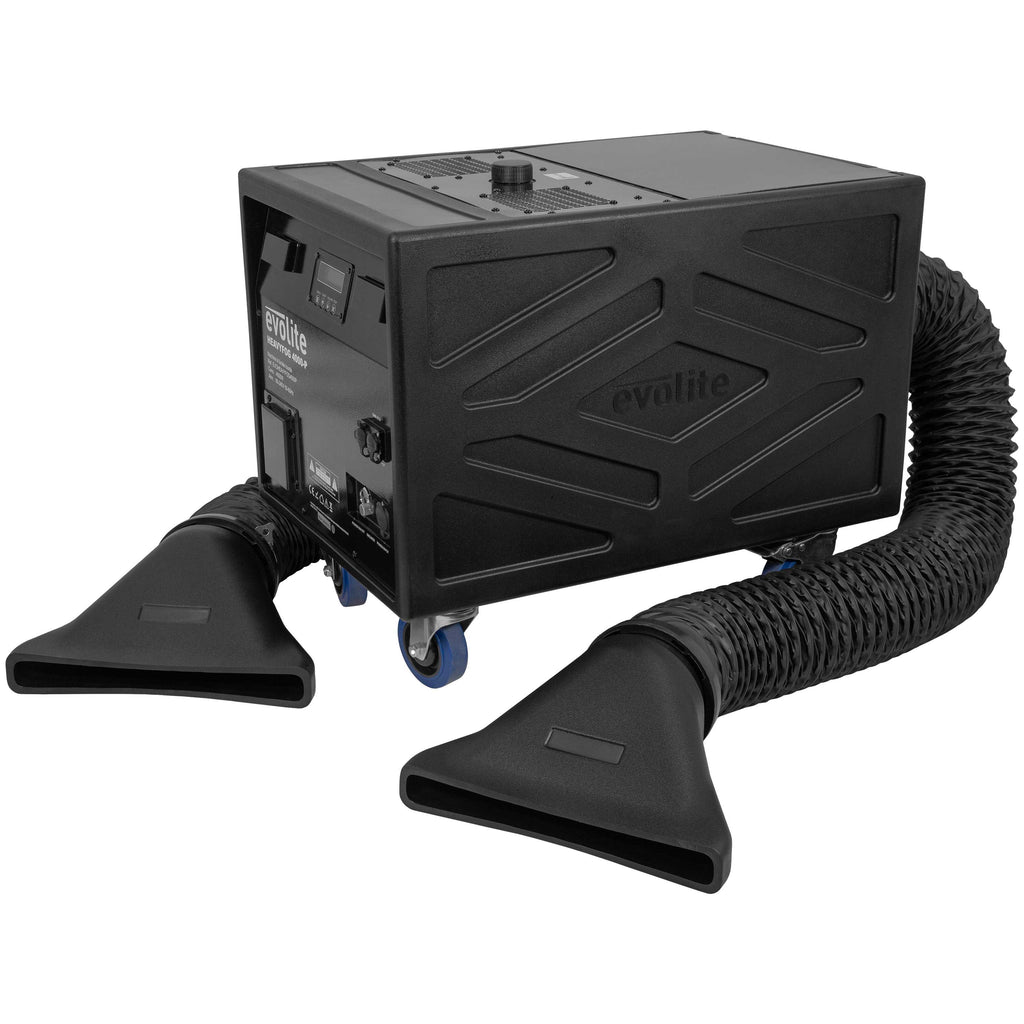

Built into a robust and lightweight ABS housing, the HeavyFog 4000P offers a compact professional solution with excellent reliability for regular use. Its fast warm-up time of around 5 minutes ensures quick deployment at events, while its large tank capacities support extended operation with fewer interruptions. A backlit LCD display provides easy parameter adjustment and fast DMX addressing, even in low-light environments. Two 1.5m extendable output tubes and diffusers are included, helping you direct and spread fog evenly across a stage or dancefloor.
Key Technologies and Features
- No Ice Required: Creates low fog using only water and Lowfog heavy fog fluid—no dry ice needed.
- 4000W Heater: High power output for dense, continuous fog production in large venues.

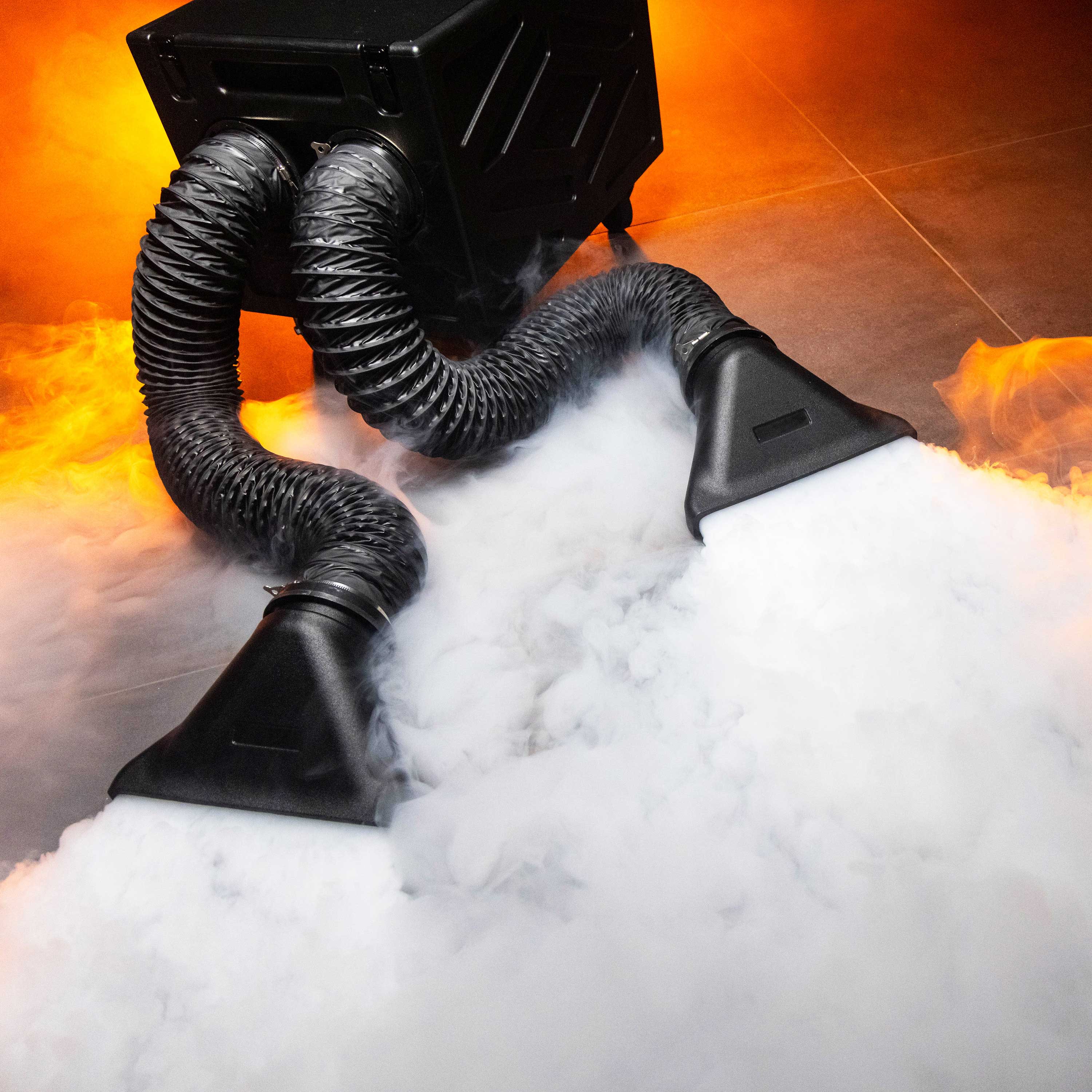

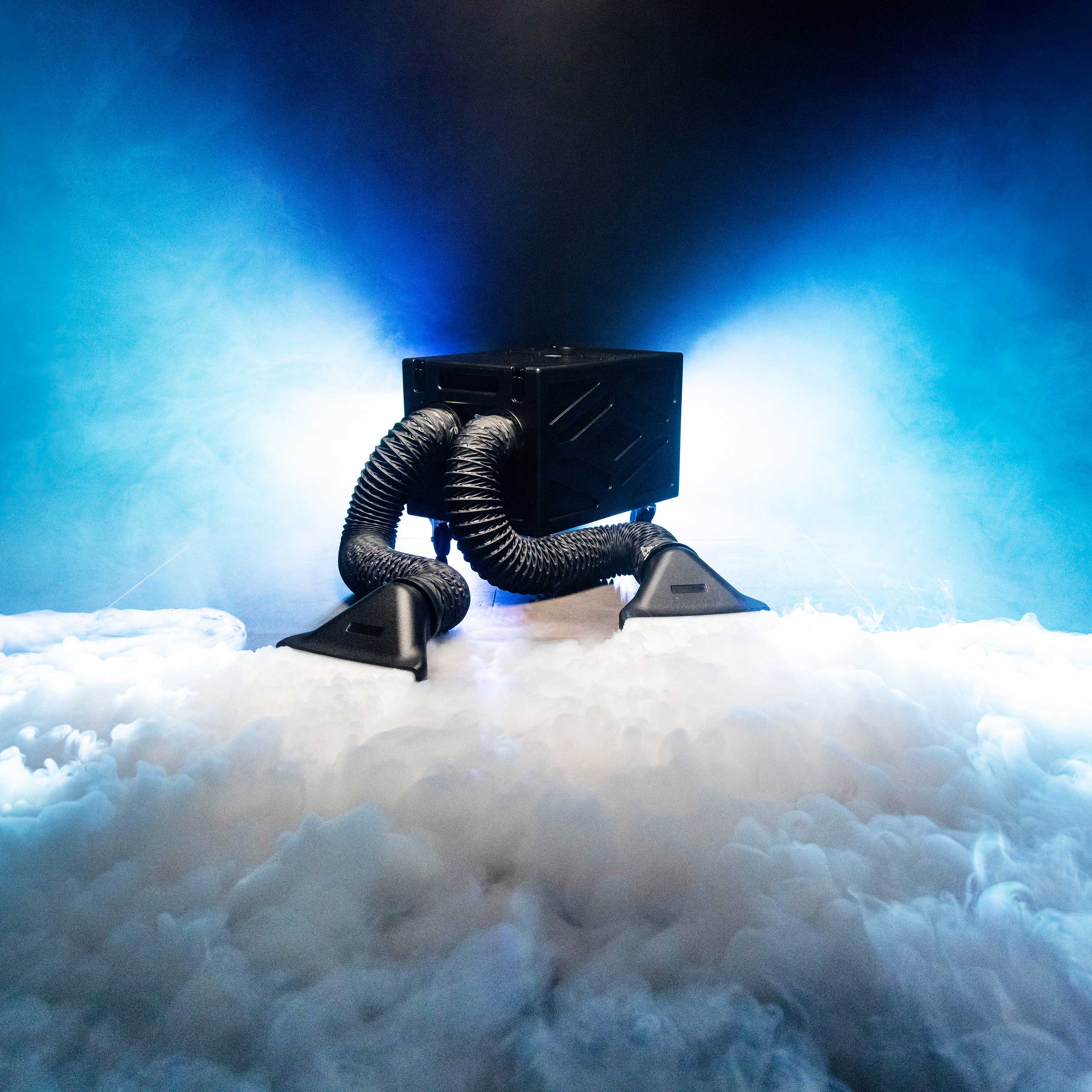

- Ground-Hugging Fog Effect: Produces thick fog that stays low for dramatic stage and dancefloor atmosphere.
- Large Coverage Area: Capable of covering up to 500 m², ideal for large halls and stages.
- Fast Warm-Up Time: Ready to use in approximately 5 minutes.

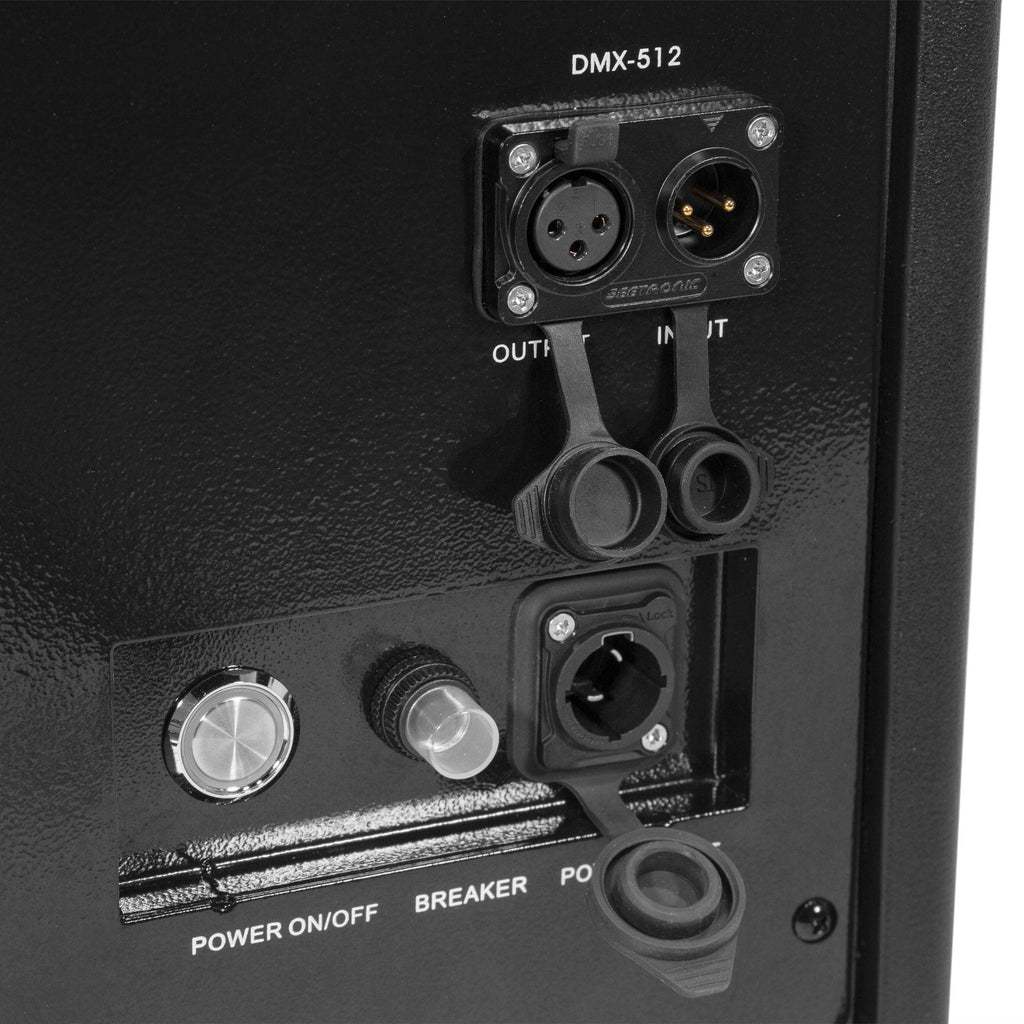

- 2-Channel DMX Control: Control fog output and fan speed for professional programming and cue control.
- Multiple Control Modes: Operate via DMX, manual, timer, or included HF wireless remote control.

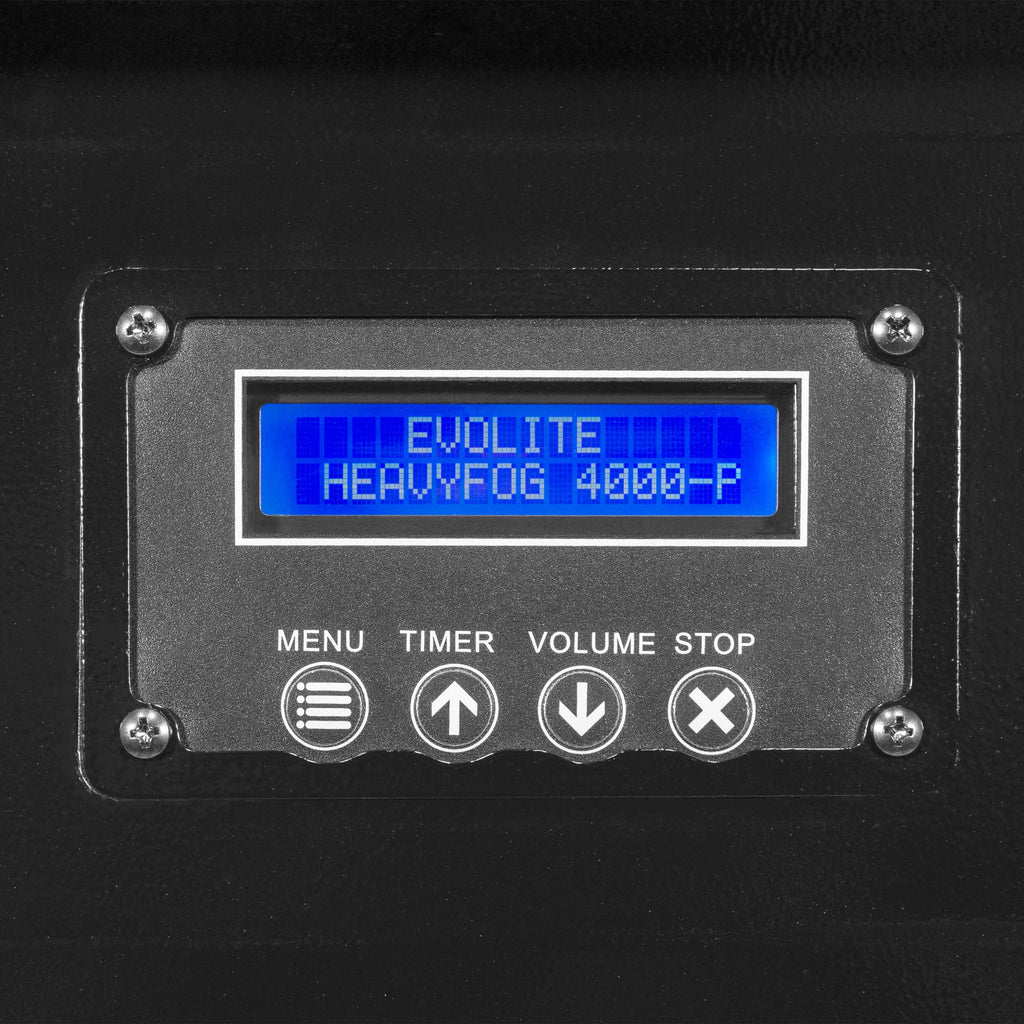

- Backlit LCD Screen: Simple navigation and easy DMX addressing for fast setup.

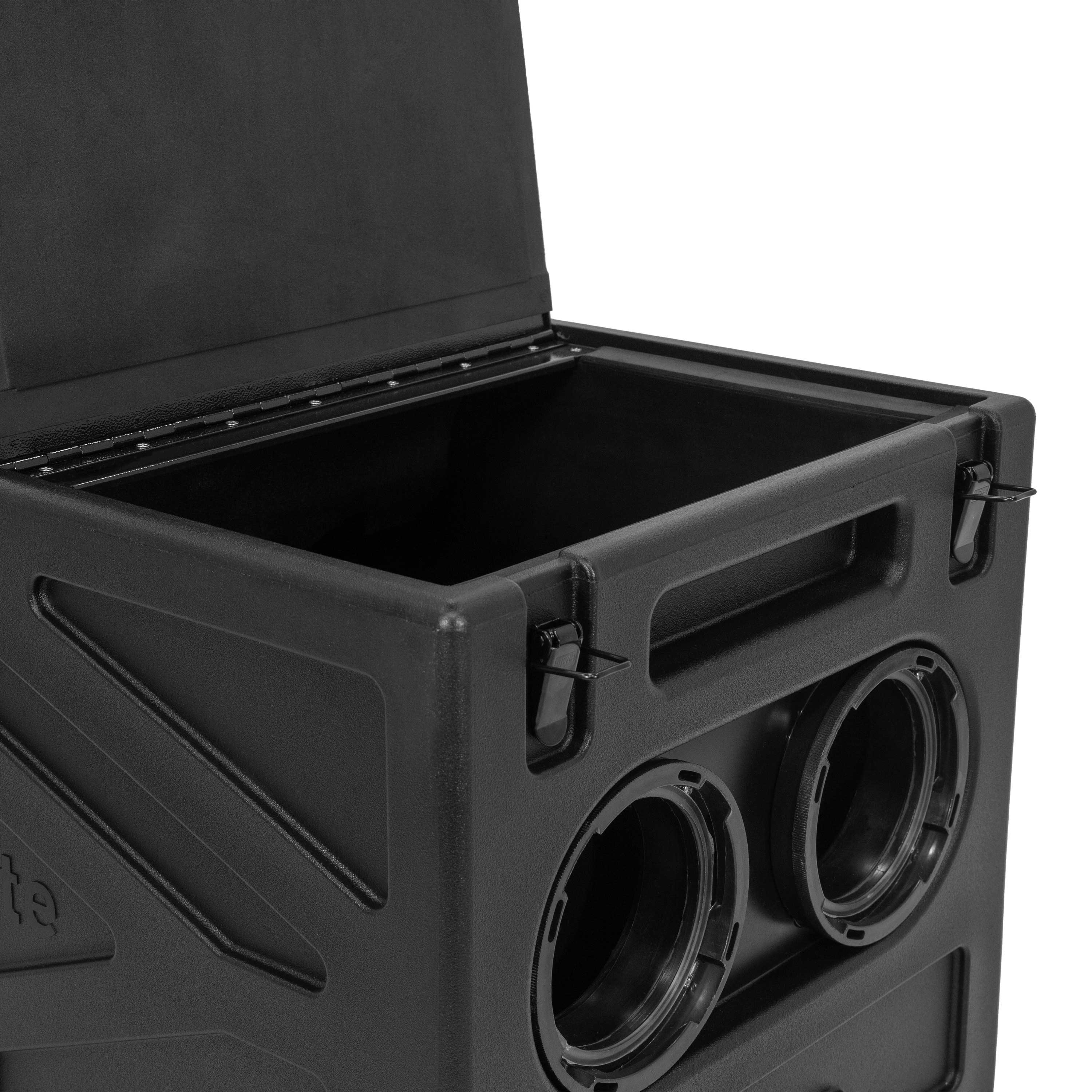

- Large Water & Fluid Tanks: 25L water tank and 2.8L fog fluid tank for extended runtime.
- Adjustable Fluid Consumption: 1–95 mL/min for flexible performance depending on venue size and effect intensity.
- Self-Cleaning System: Helps reduce maintenance time and improves long-term reliability.
- Water Level Sensor & Indicator: Safer operation with monitoring of water level during use.

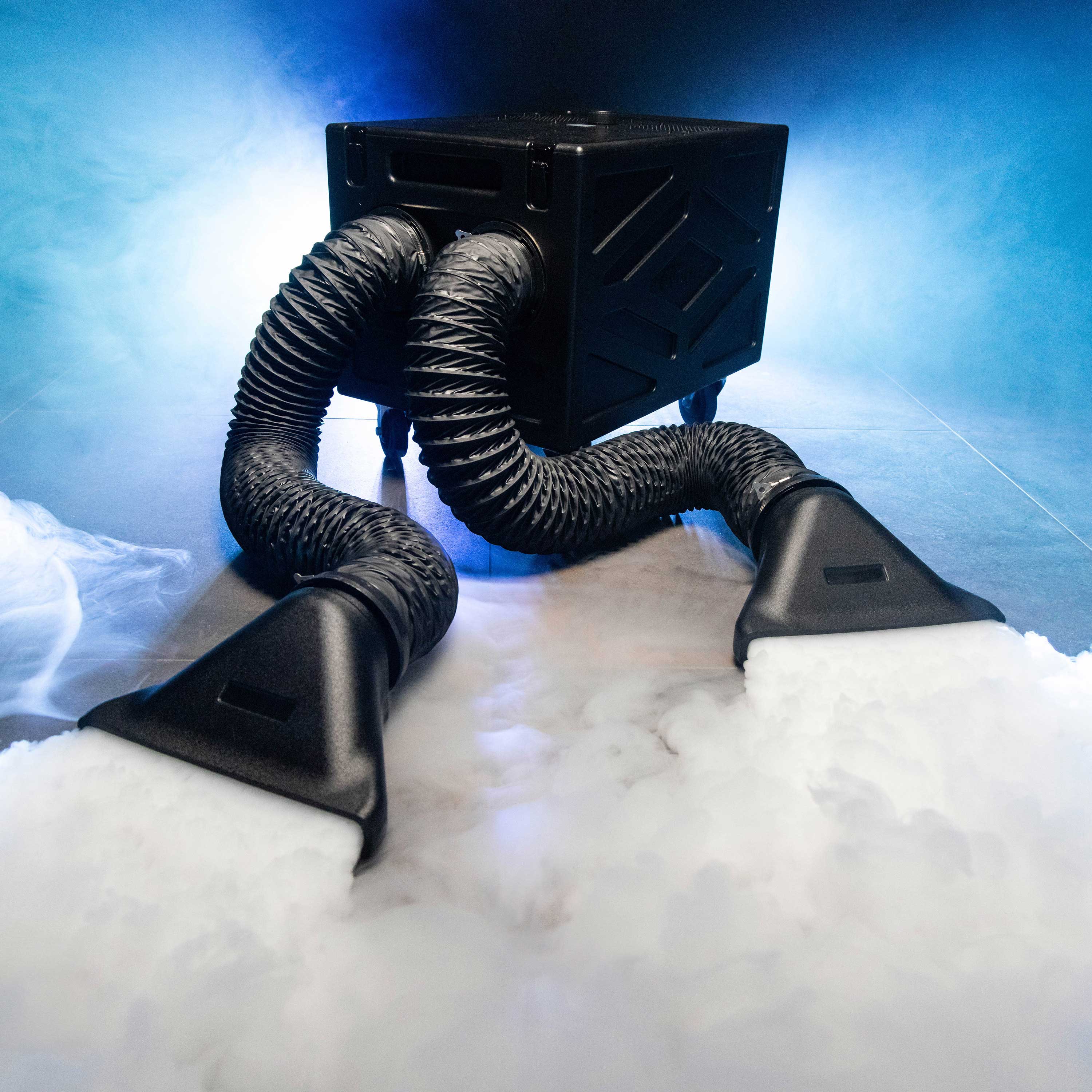

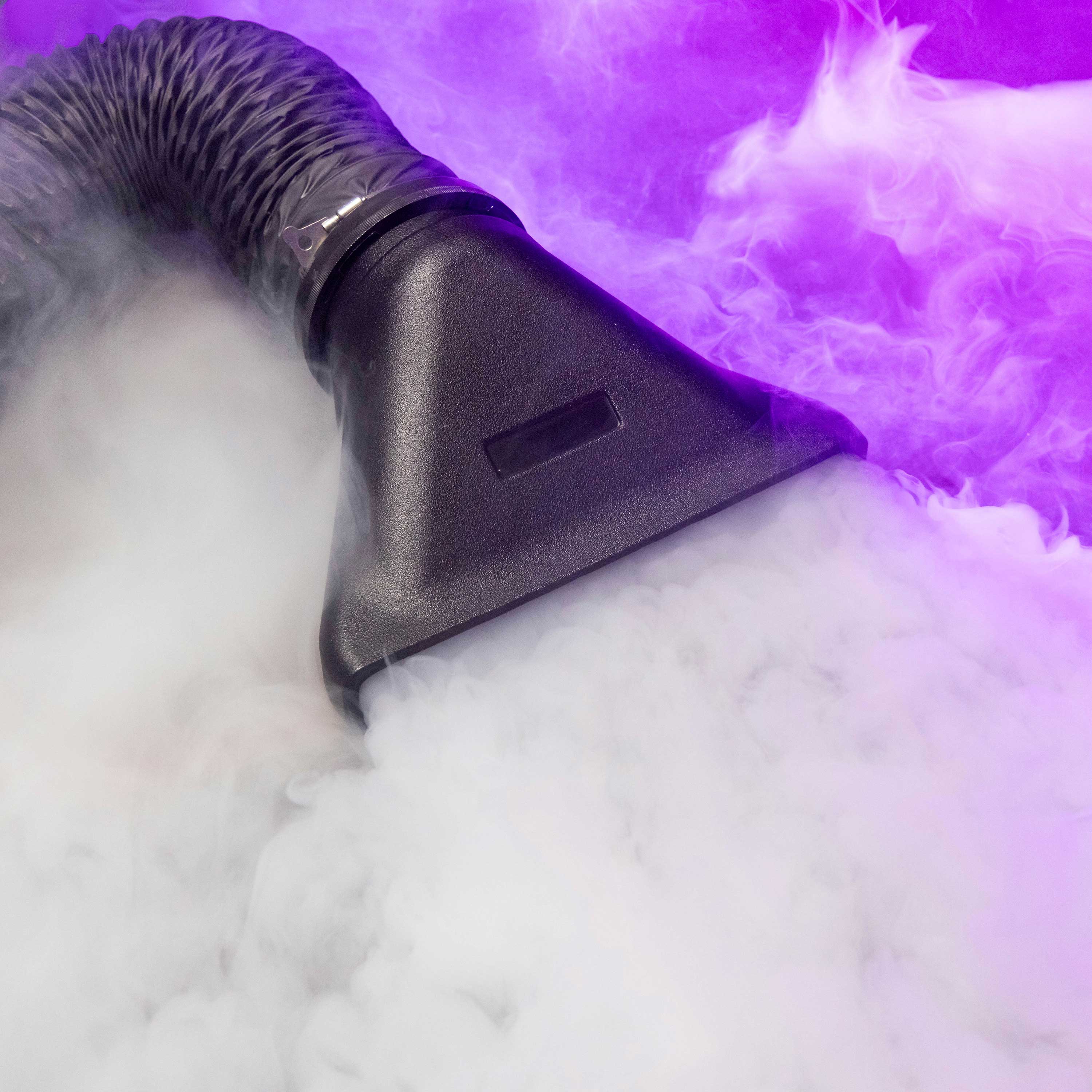

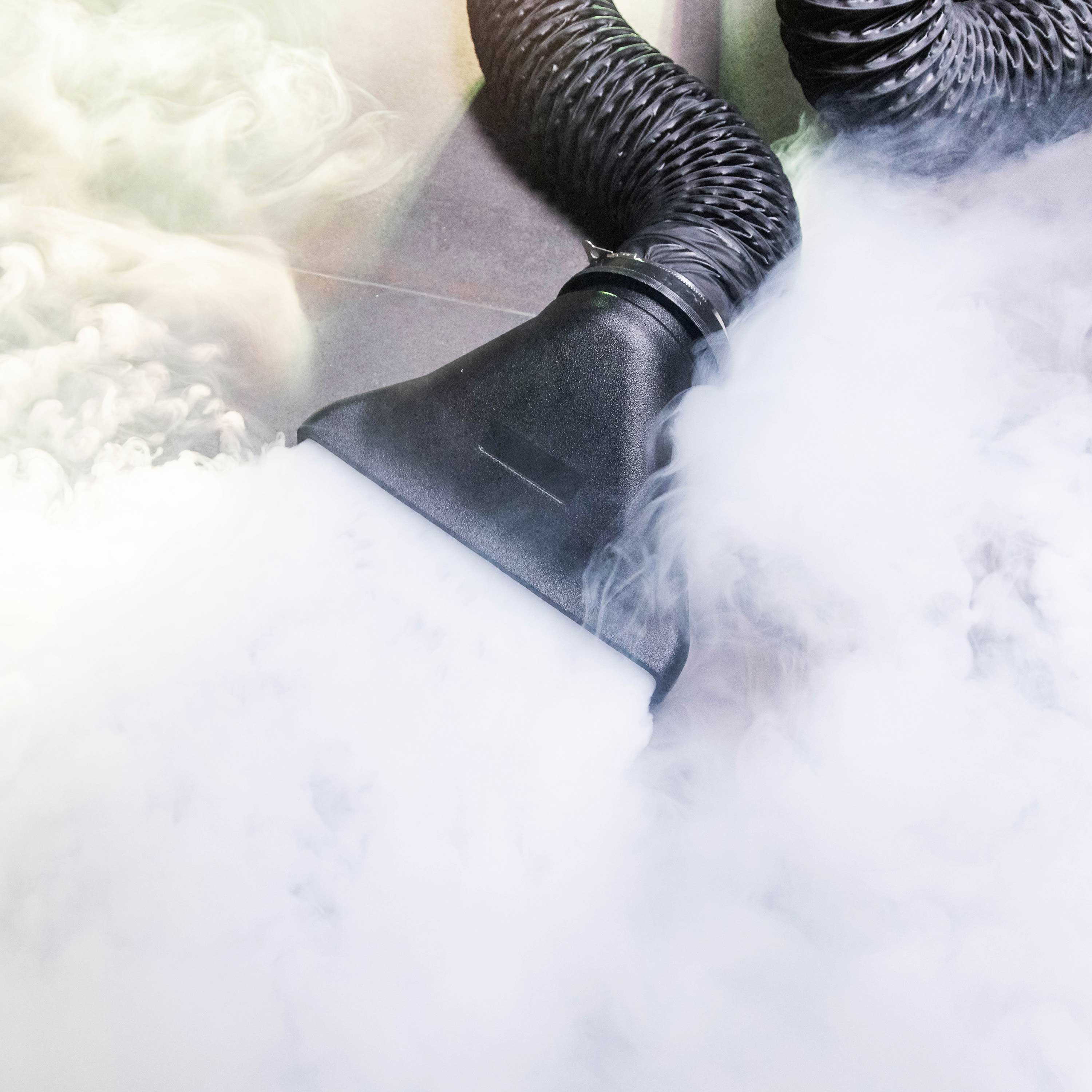

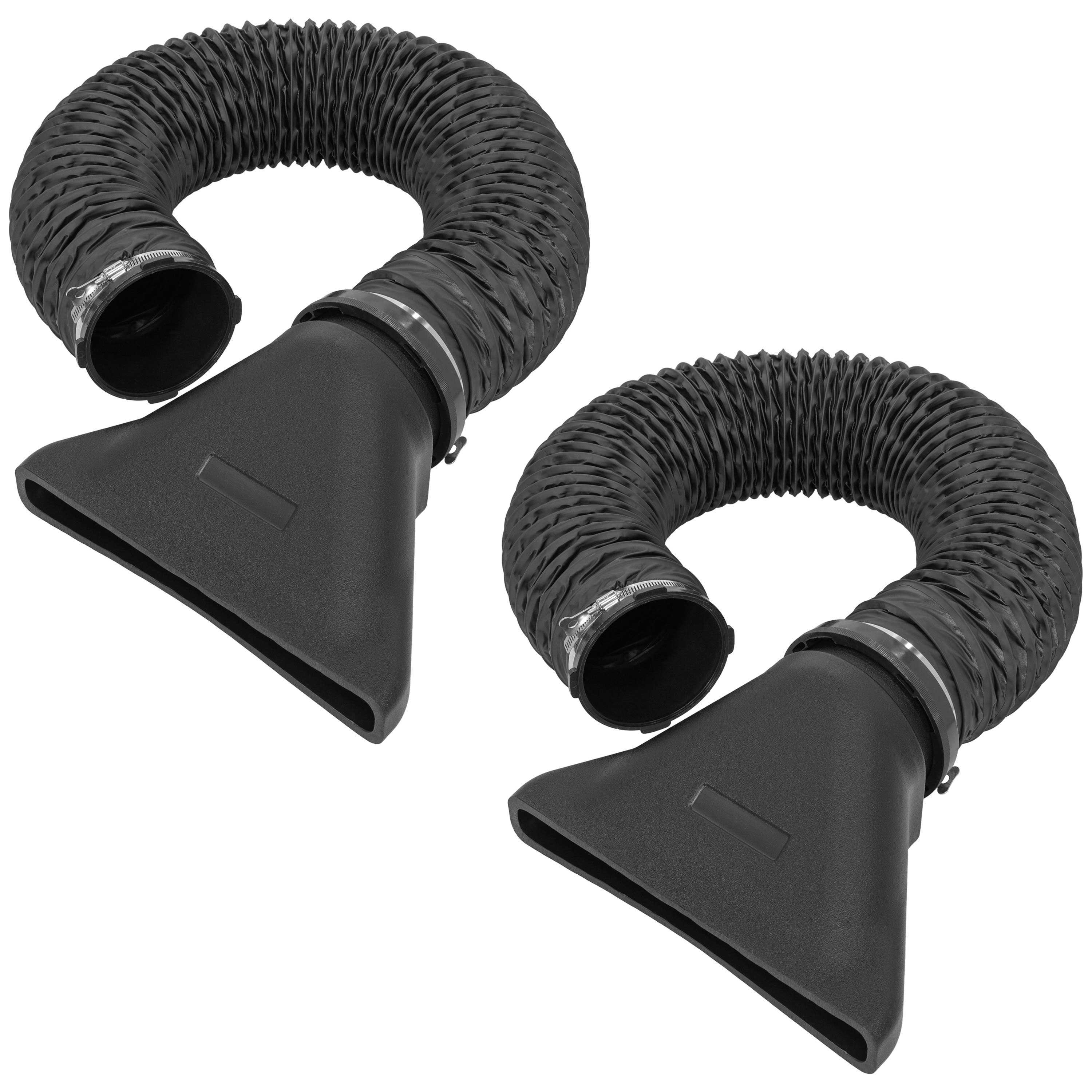

- Extendable Tubes Included: 2 × 1.5m tubes with diffusers for controlled fog dispersion and better coverage.
Specifications
| Specification | Details |
|---|---|
| Brand | Evolite |
| Model | HeavyFog 4000P |
| Effect Type | Low fog / heavy fog machine |
| Heater Power | 4000W |
| Warm-Up Time | Approx. 5 minutes |
| Coverage Area | Up to 500 m² |
| Fog Output | Continuous |
| Fog Flow | < 500 m³/min |
| DMX Channels | 2 channels |
| DMX Functions | Fog flow and fan speed |
| Control Modes | DMX / manual / timer / HF remote control |
| Display | Backlit LCD |
| Water Tank Capacity | 25L |

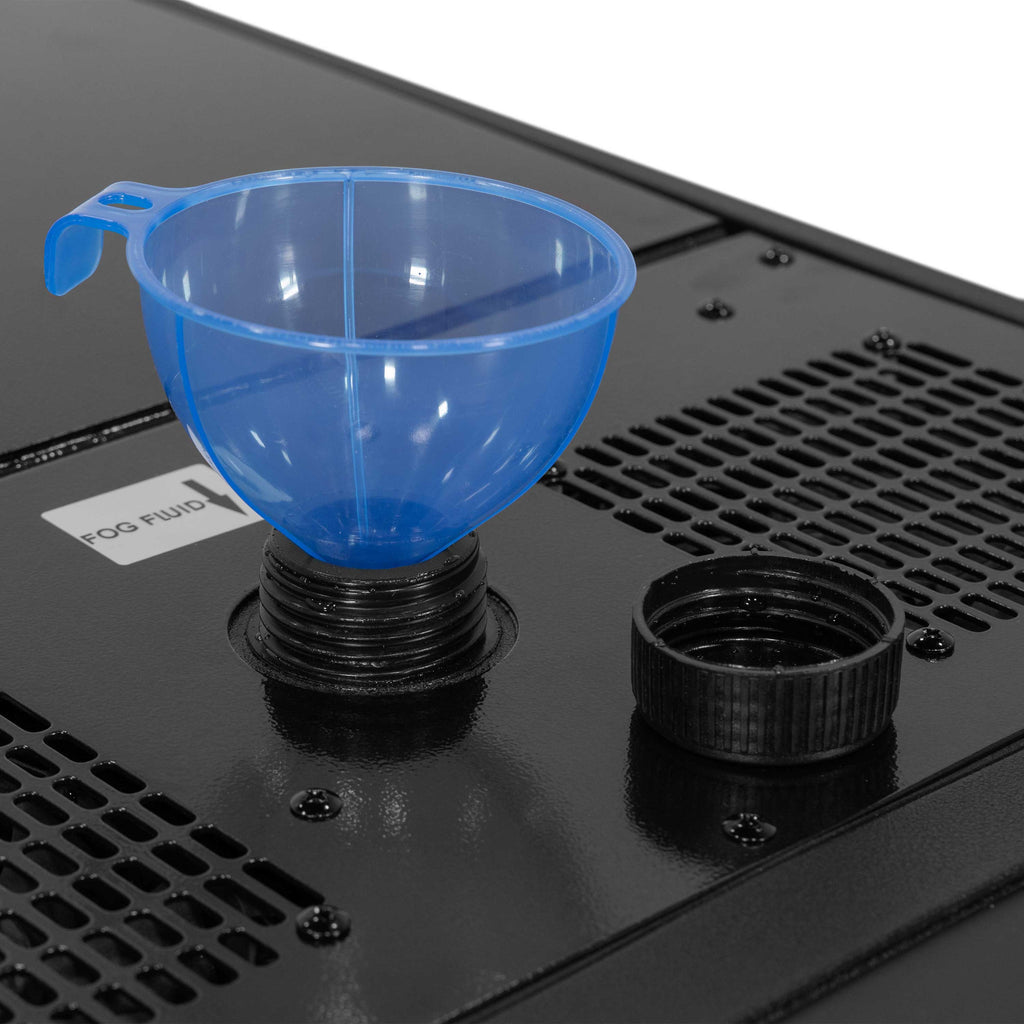

| Fog Fluid Tank Capacity | 2.8L |
| Fog Fluid Consumption | 1–95 mL/min |
| Compatible Fluid | Lowfog heavy fog fluid only + water |
| Included Accessories | 2 × extendable tubes (1.5m) + diffusers |
| Safety Features | Water level sensor + indicator light, self-cleaning system |
| Voltage | 230 VAC / 50 Hz |
| Fuse | 10A |
| Dimensions (W × H × D) | 690 × 465 × 562 mm |
| Weight | 33 kg |
| Housing | ABS |
| Warranty | 3 years |
Performance and User Experience
The Evolite HeavyFog 4000P is designed for event professionals who need powerful low fog without the added cost, logistics, and safety concerns of dry ice. With continuous output, high coverage capacity, and precise control over flow and fan speed, it creates a premium “low cloud” effect that enhances lighting beams and gives your event a cinematic look. The included extendable tubes help direct fog exactly where it’s needed—ideal for wide stages, long walkways, and large dancefloors. With its self-cleaning function and large tanks, it also provides excellent practicality for repeated use across multiple events and busy show schedules.
Q&A Section
Q: Does the HeavyFog 4000P require dry ice?
A: No, it produces low fog using only water and Lowfog heavy fog fluid.
Q: How large an area can it cover?
A: It can cover up to approximately 500 m² depending on venue conditions and output settings.
Q: Can it be controlled via DMX?
A: Yes, it supports 2-channel DMX control for fog flow and fan speed.
Q: What’s included with the machine?

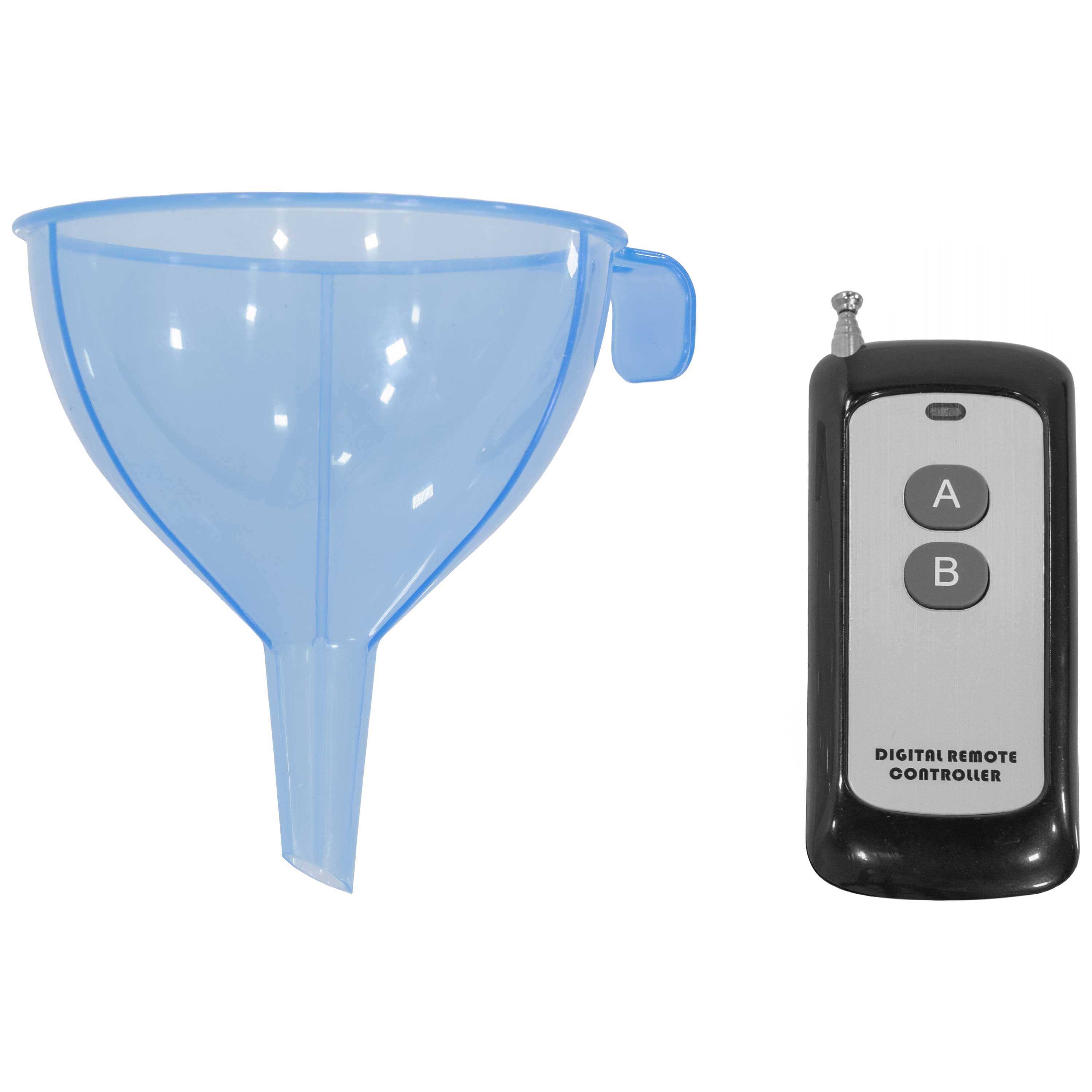

A: It includes 2 × 1.5m extendable tubes with diffusers and a wireless remote control.
Q: How long does it take to warm up?
A: The machine is ready to operate in approximately 5 minutes.
