Overview

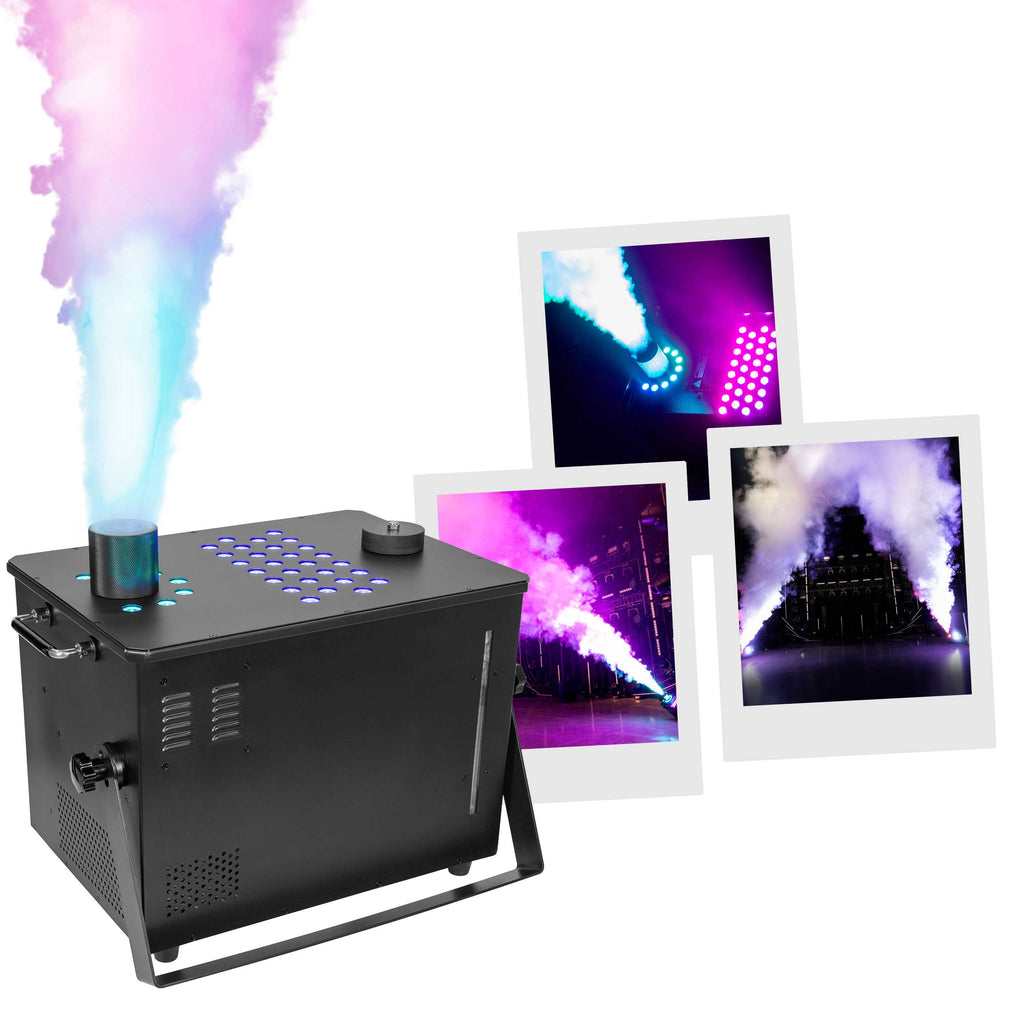

The Evolite Pro FogJet Co2 IP is a professional, high-output CO2-style jet fog machine engineered for powerful outdoor effects with reliable performance in demanding environments. Featuring IP54 protection, a massive 15-metre smoke projection, and an impressive 39 × 8W RGB LED array, this unit delivers a spectacular stage effect that’s perfect for festivals, concerts, outdoor stages, parades, and large-scale events. Designed to replicate the dramatic look of traditional CO2 cannons using special Evolite FogJet Co2 fluid, it produces dense, opaque smoke columns with fast dissipation — ideal for repeated triggering throughout a performance.
Design and Build Quality

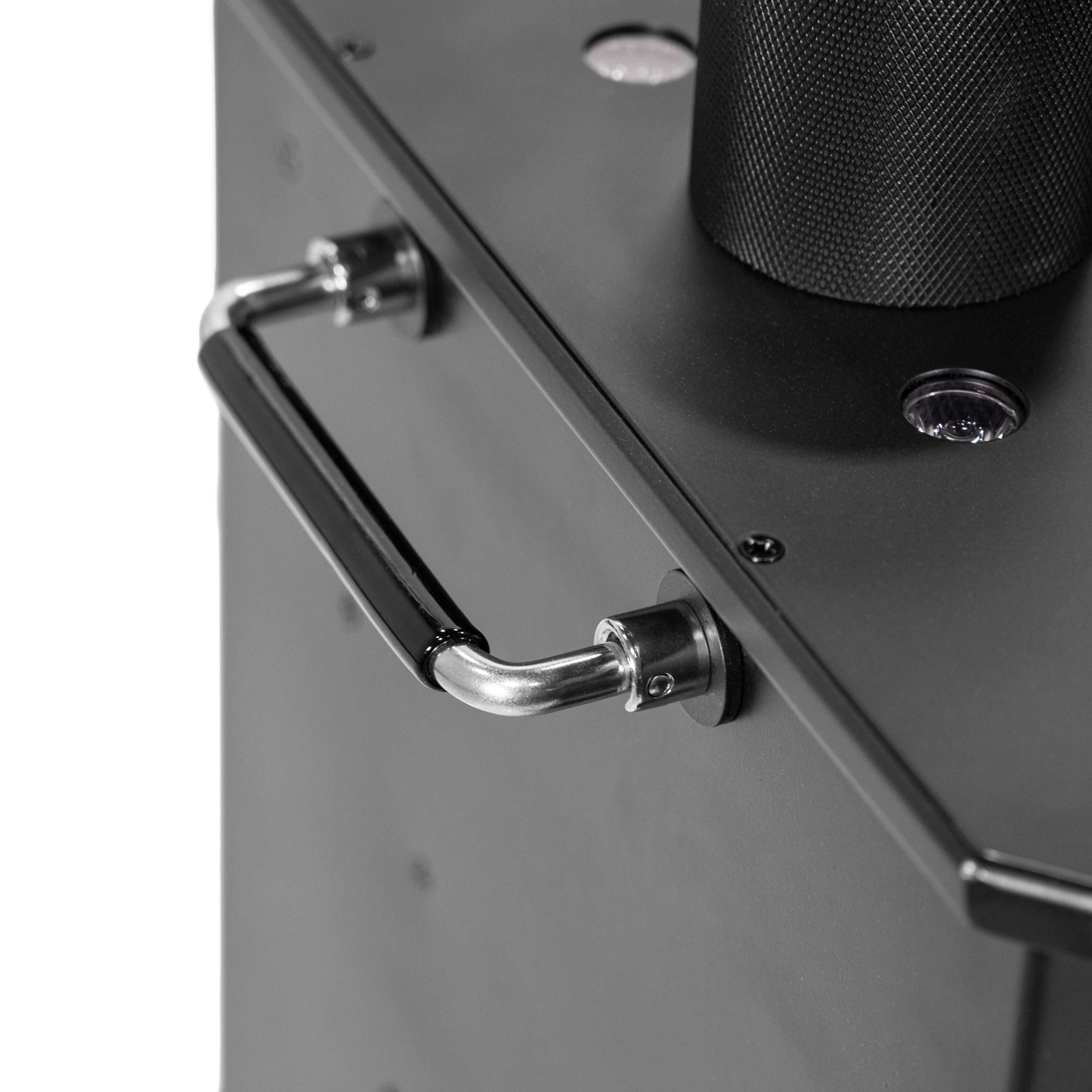

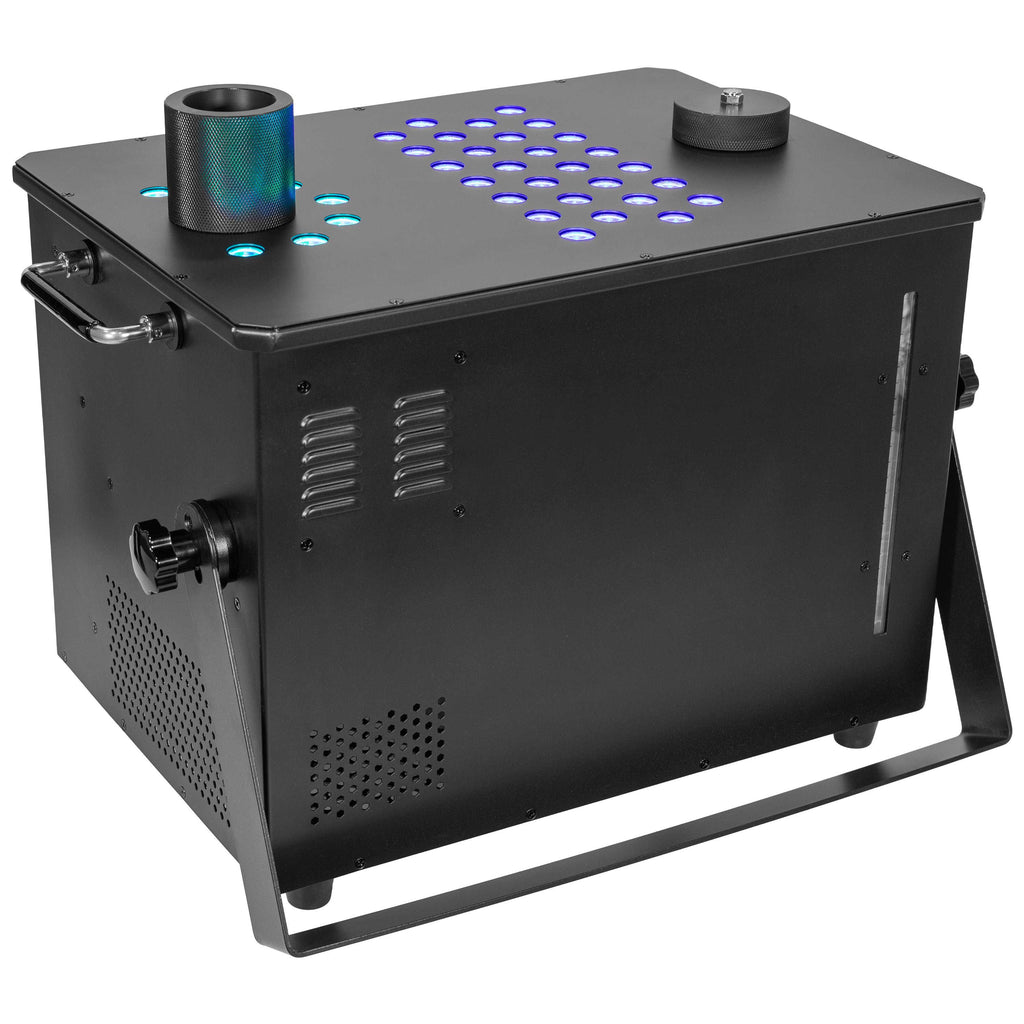

Built for professional touring and outdoor installations, the FogJet Co2 IP features a rugged design with splash and dust resistance, making it a strong choice for unpredictable weather and heavy event use. Its powerful 3500W heating element delivers rapid readiness with a warm-up time of only 7 minutes, while the robust internal components support high-pressure output for tall, high-impact jets. The unit can be operated vertically or angled at 45°, allowing greater creativity and coverage depending on the stage layout. A large 4.5L tank and efficient fluid consumption help keep the machine running for extended performances. For safe and professional integration, it includes a built-in 20A circuit breaker and is supplied with a TRUEOne power cable.
Key Technologies and Features
- Outdoor-Rated IP54 Protection: Splash and dust resistant for reliable performance outdoors and on festival stages.

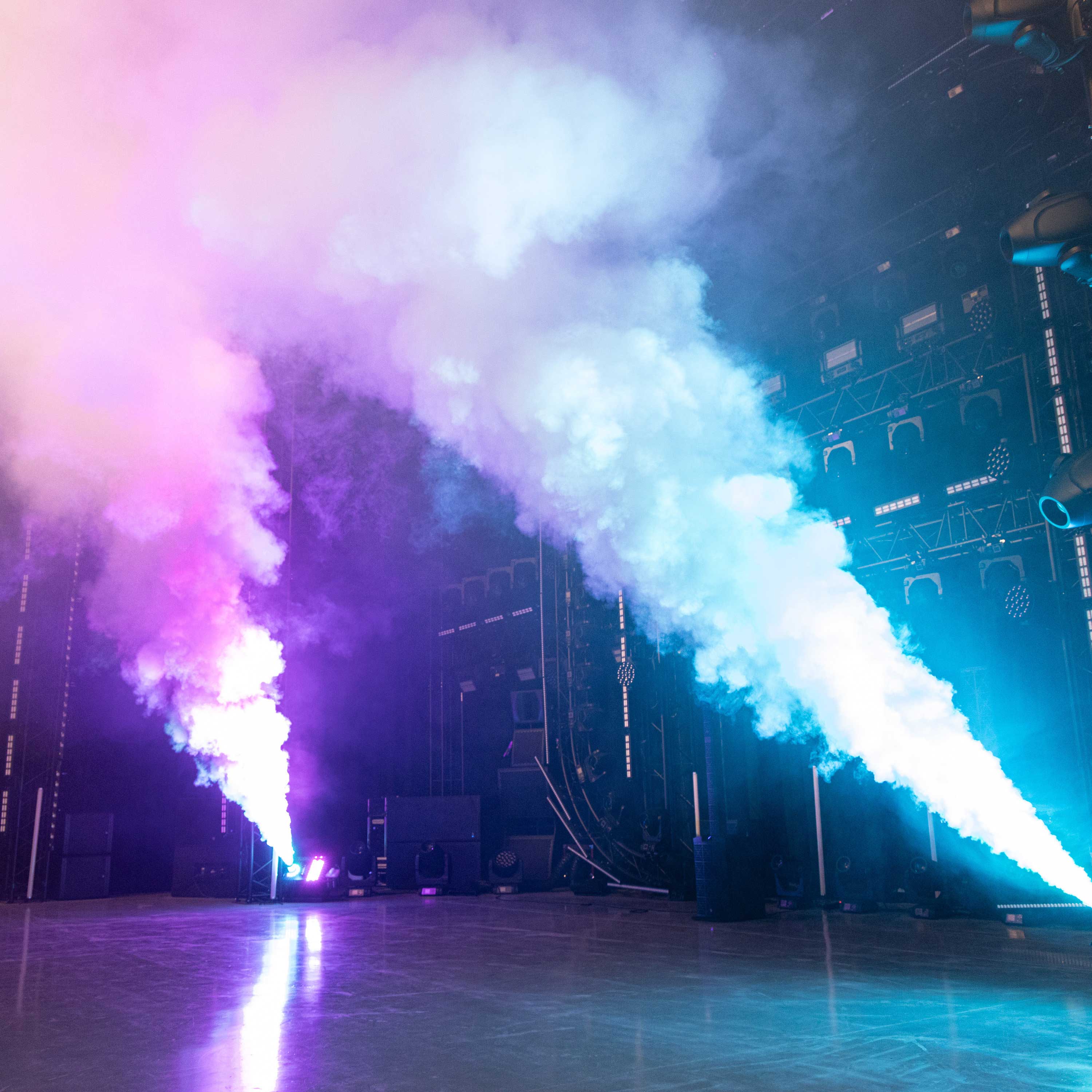

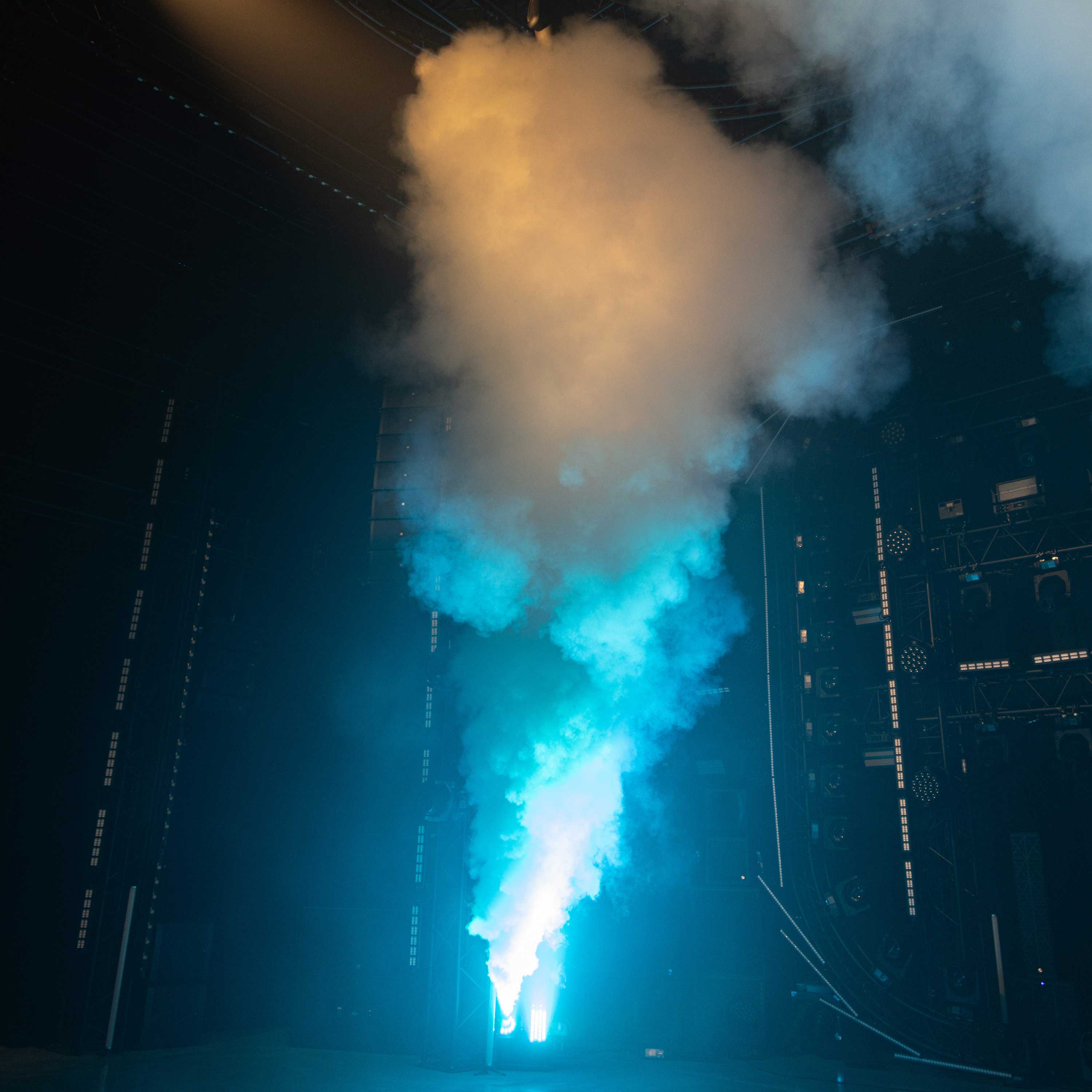

- Massive 15m Smoke Projection: Creates towering CO2-style jet columns for maximum visual impact.

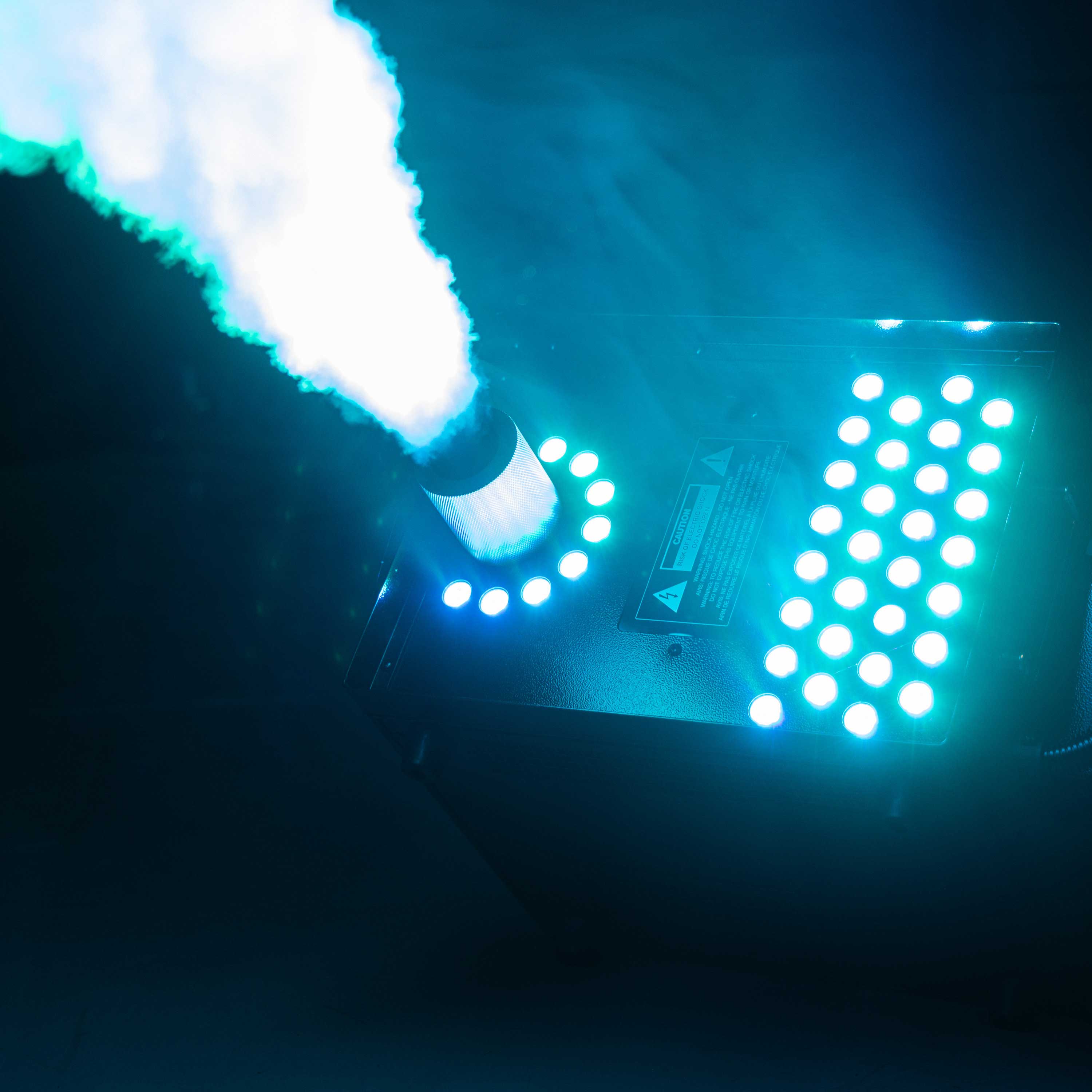

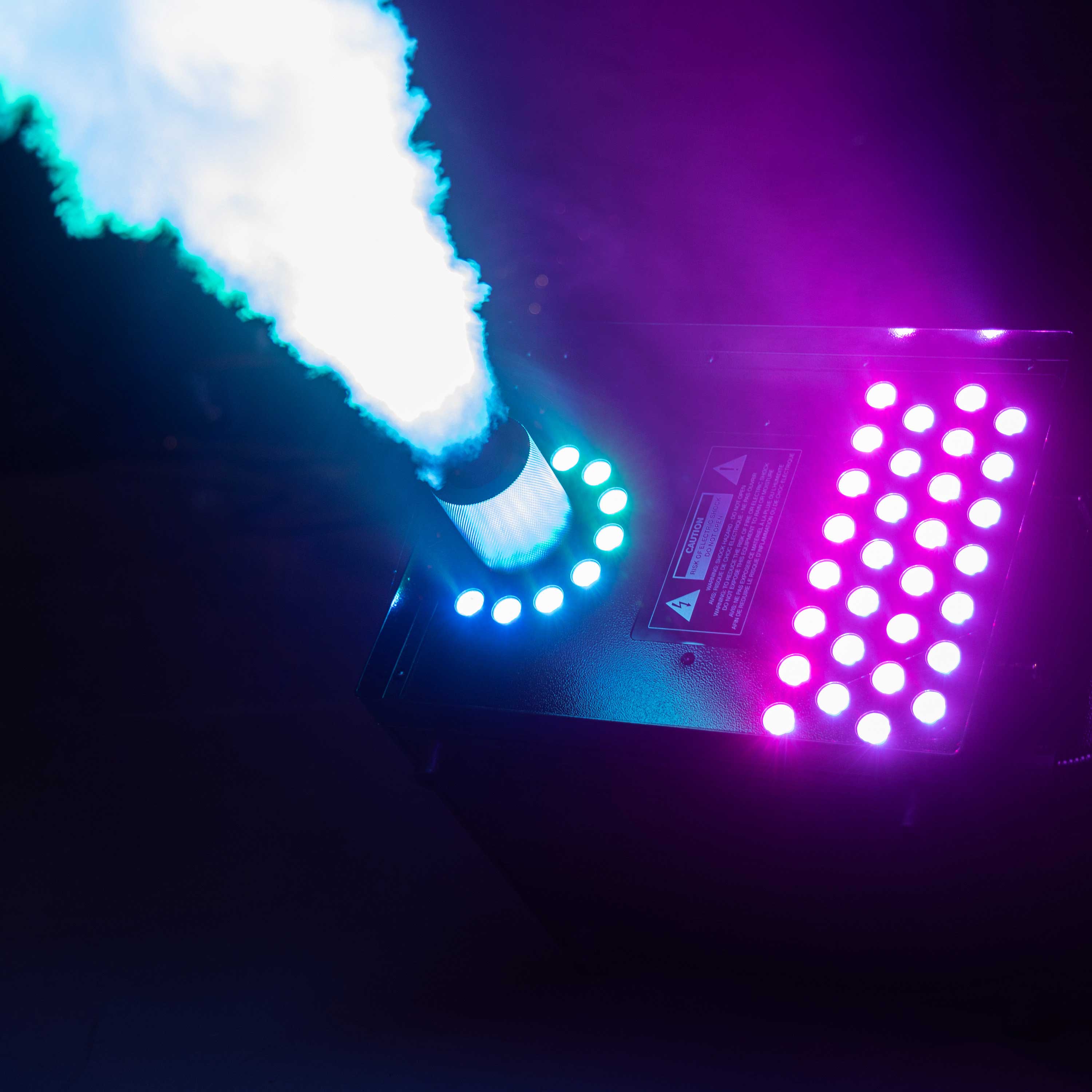

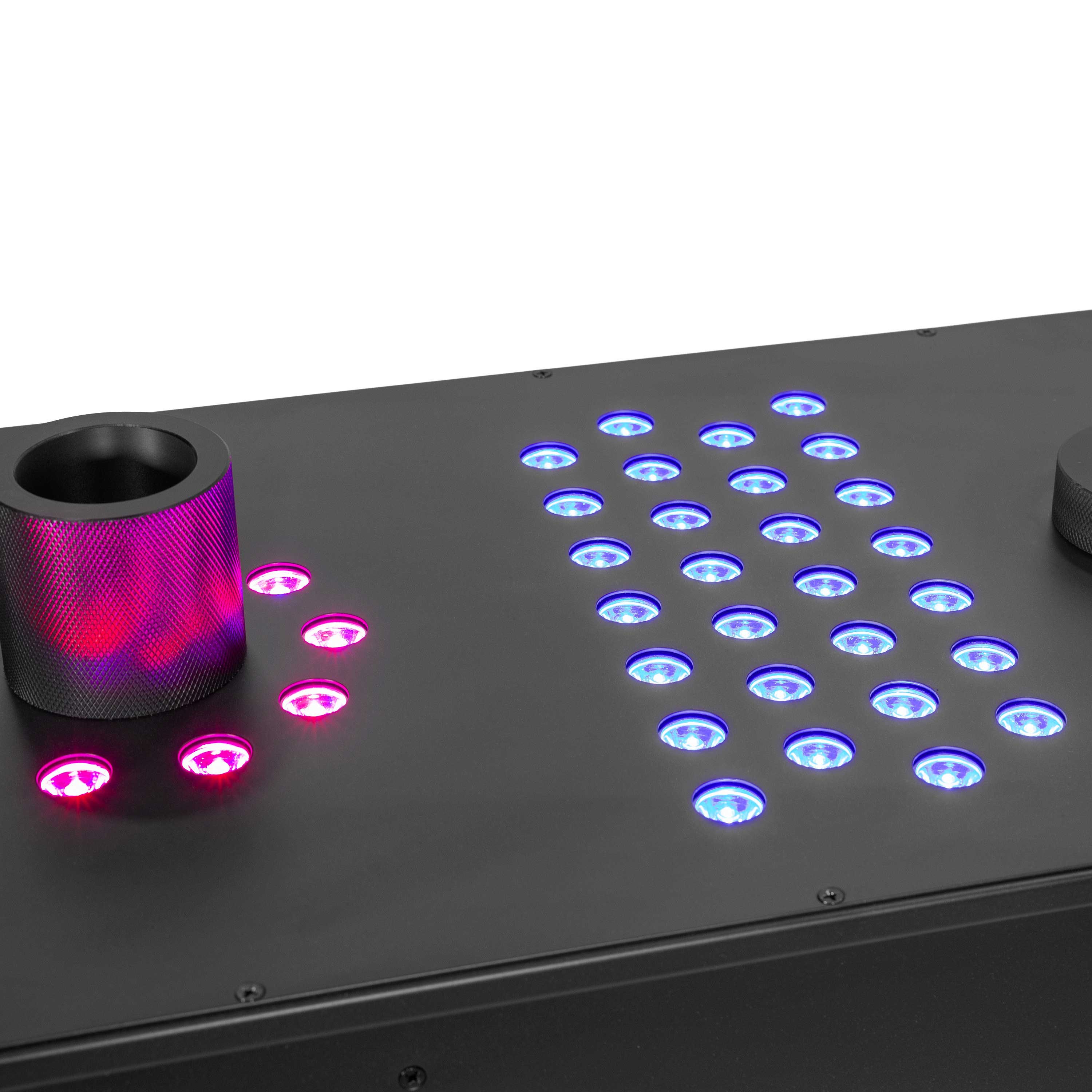

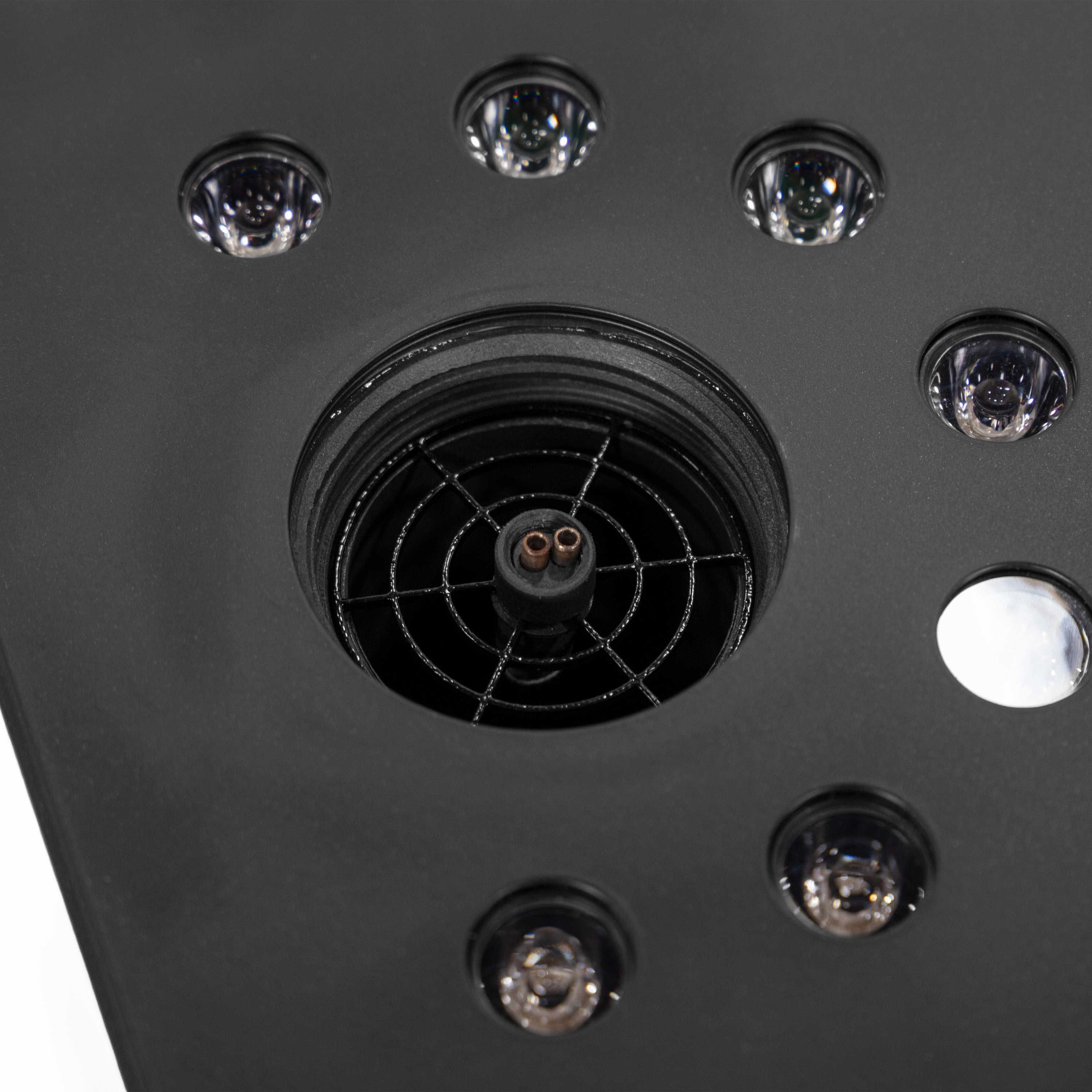

- 39 × 8W RGB LEDs: Powerful LED array colours the smoke jets for dramatic, synchronised stage lighting effects.
- High-Power 3500W Heater: Rapid pressure build-up for strong output performance.
- Fast Warm-Up Time: Ready to use in approximately 7 minutes.

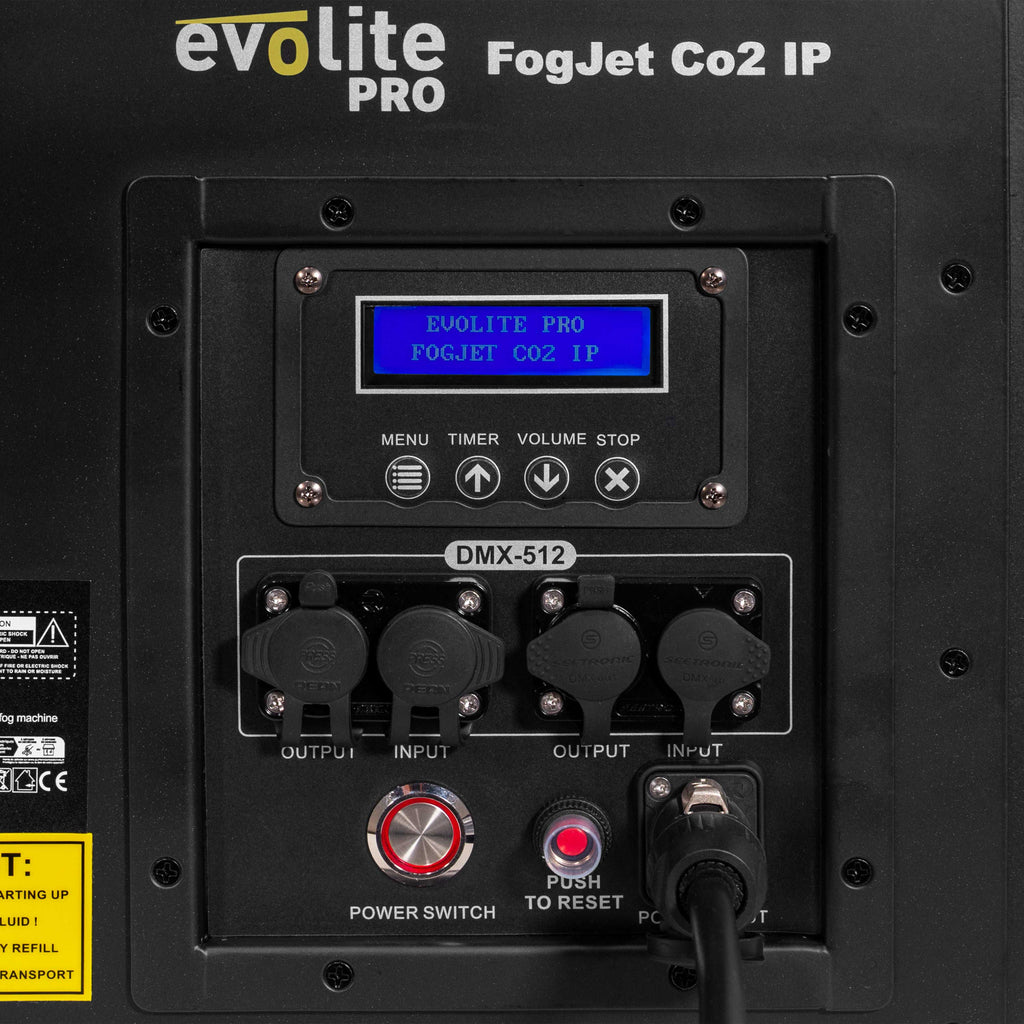

- DMX Control: 5 or 11 DMX channel modes for flexible show integration and advanced programming.

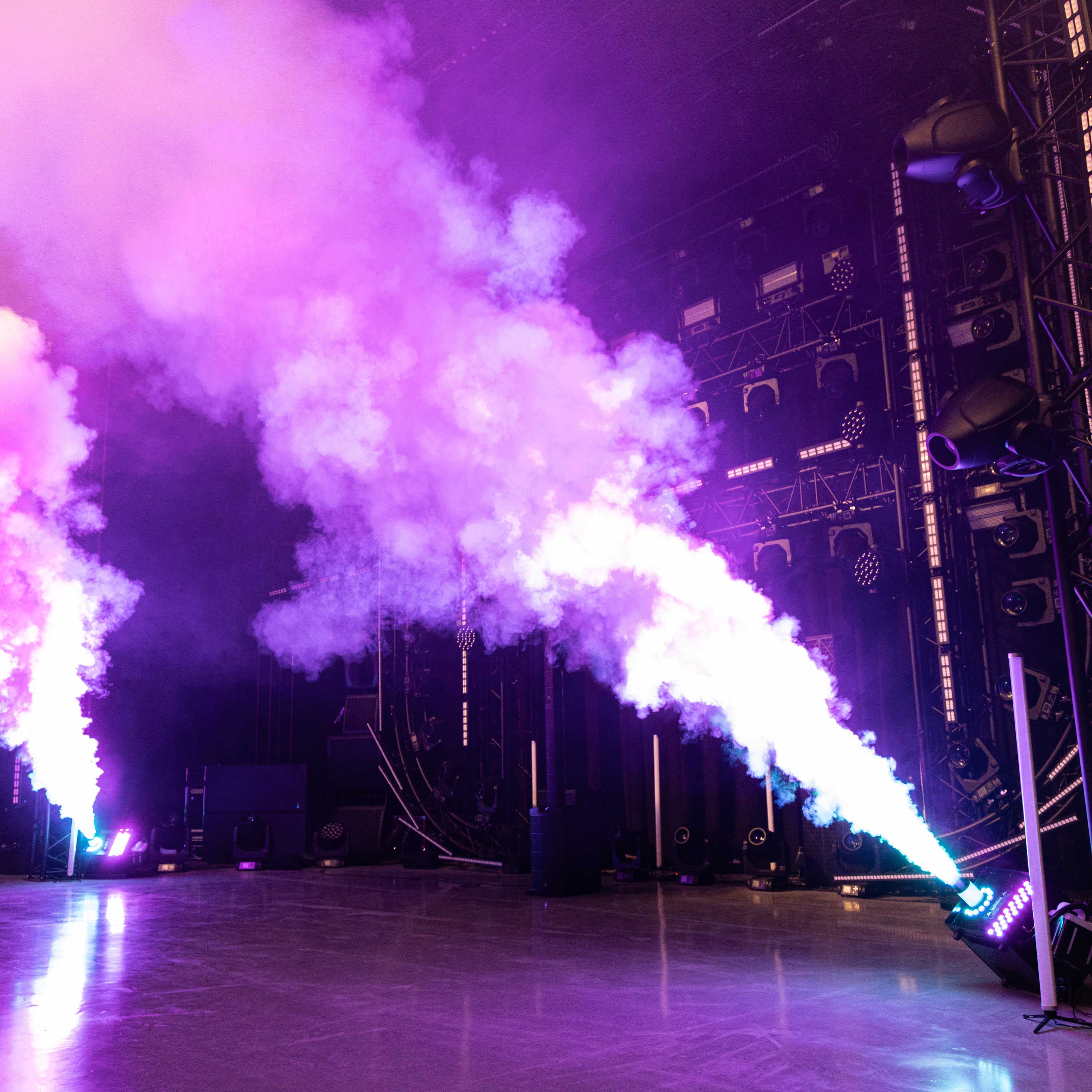

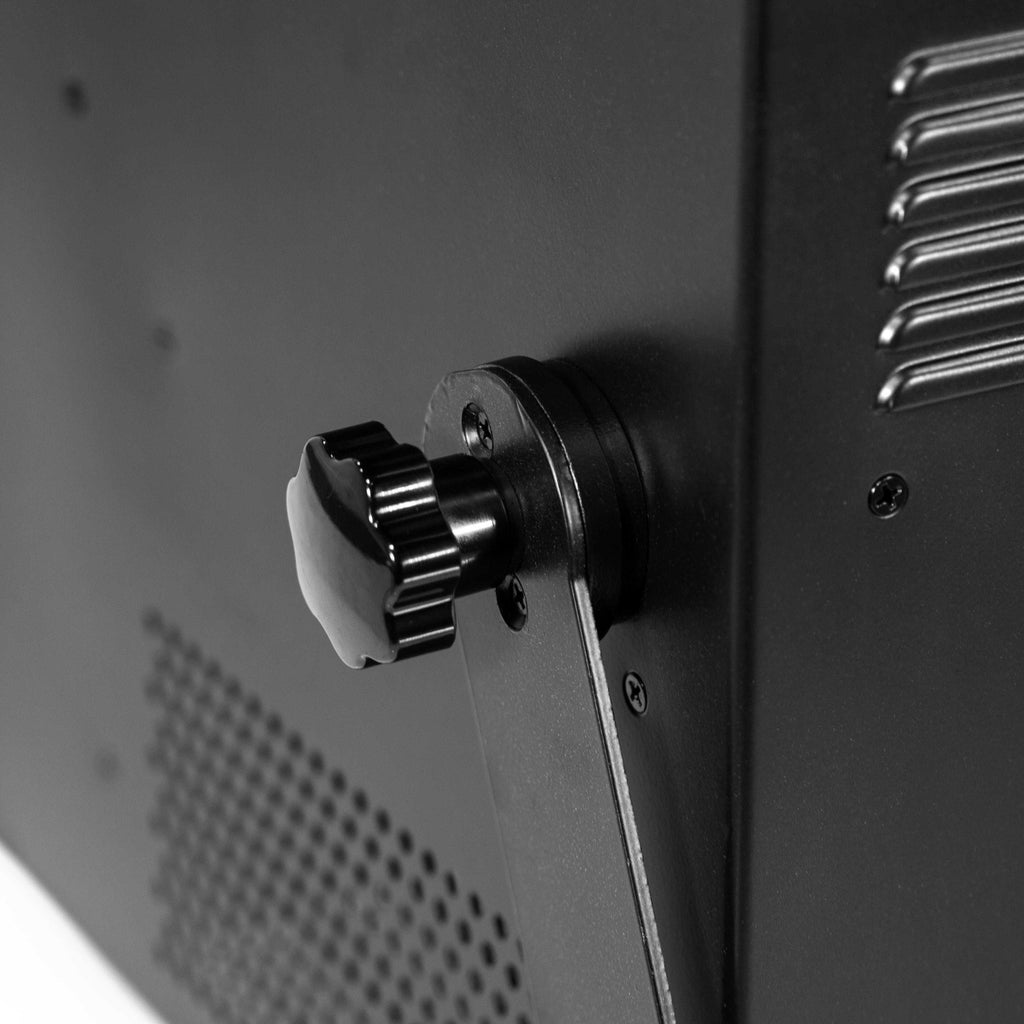

- Vertical or 45° Operation: Multiple mounting positions for creative jet direction and stage placement.

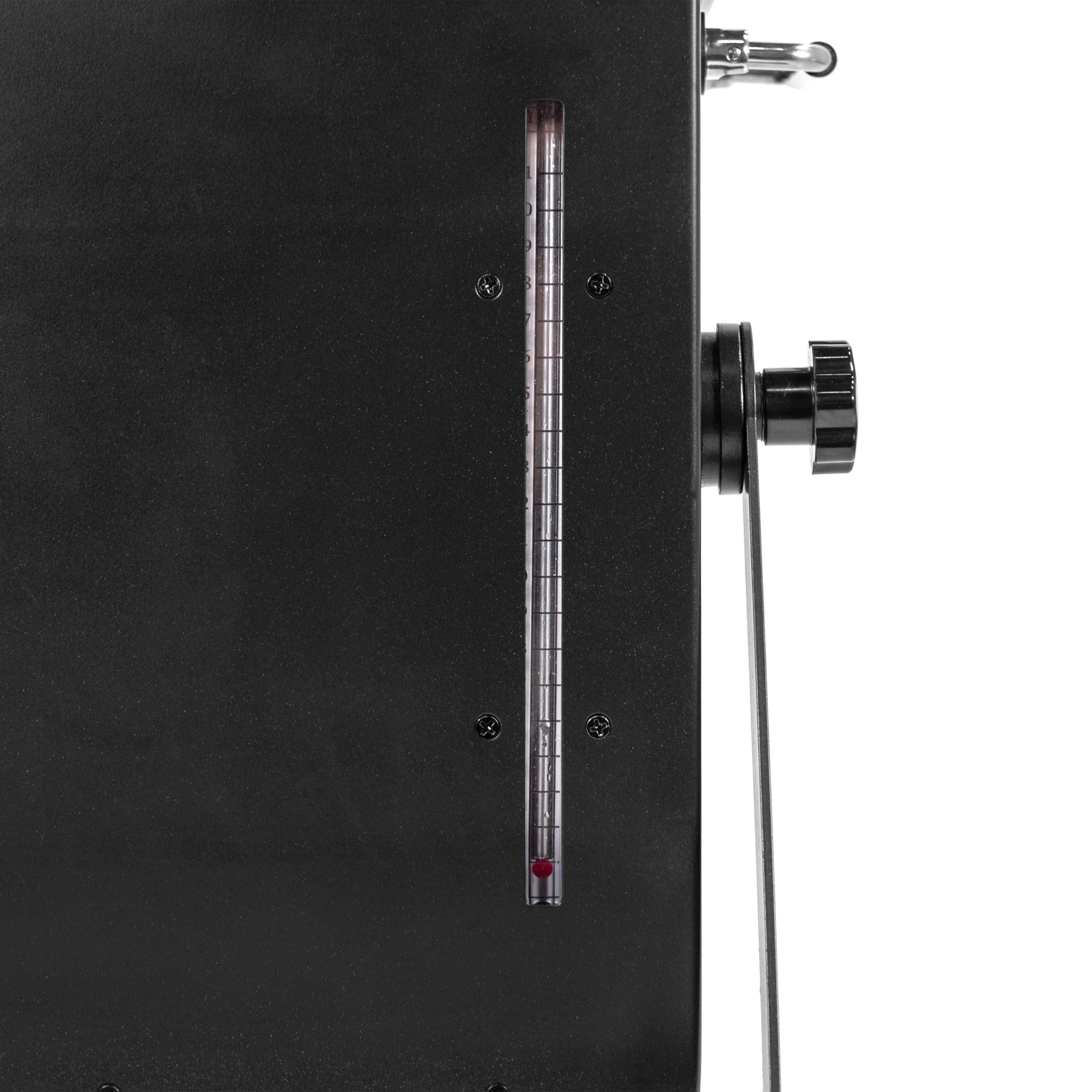

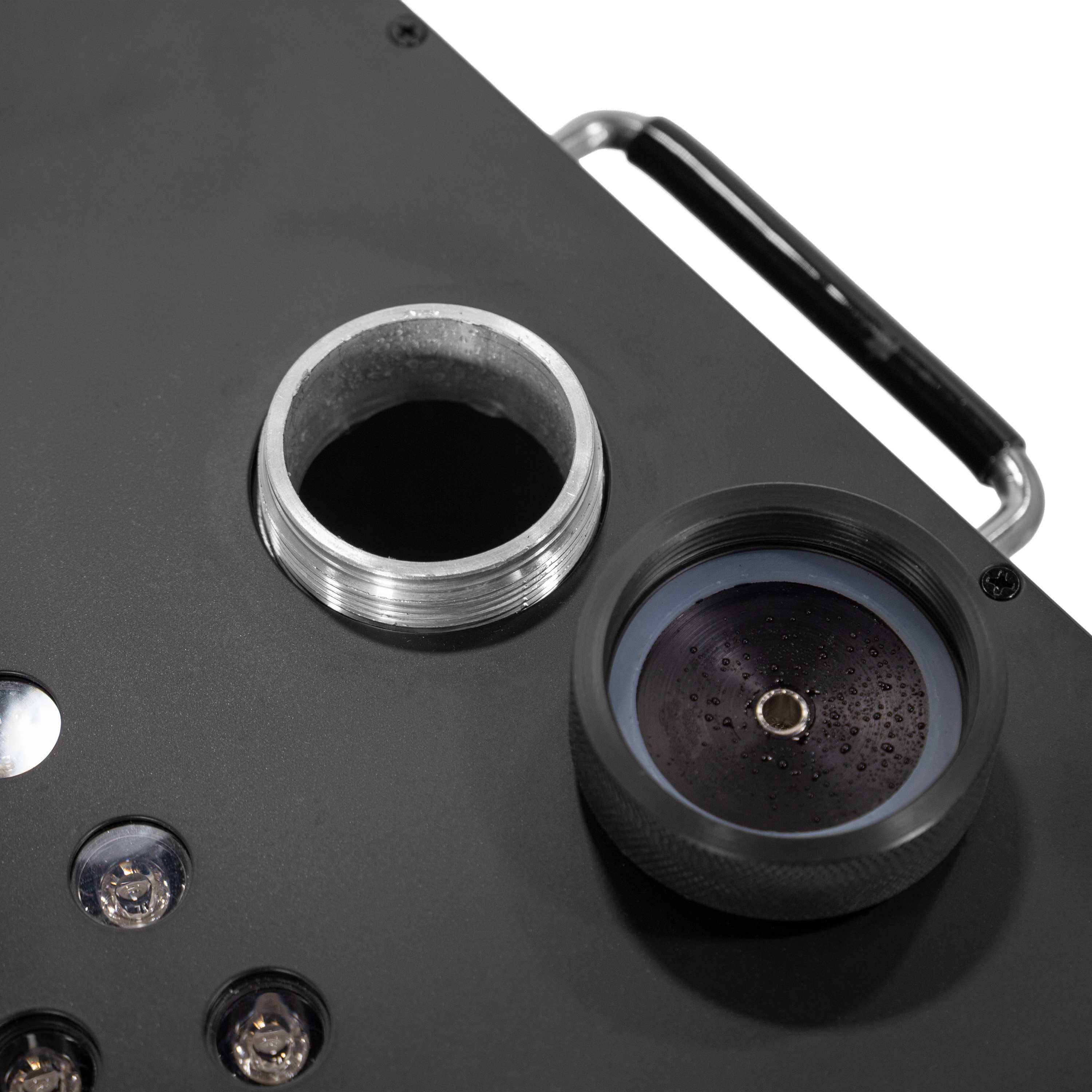

- Large 4.5L Tank Capacity: Ideal for intensive performances and repeated firing sequences.
- Optimised Fluid Consumption: Approx. 8mL/sec for powerful output with efficient usage.
- Rapid Smoke Dissipation: Produces a thick effect without over-saturating the stage with lingering haze.

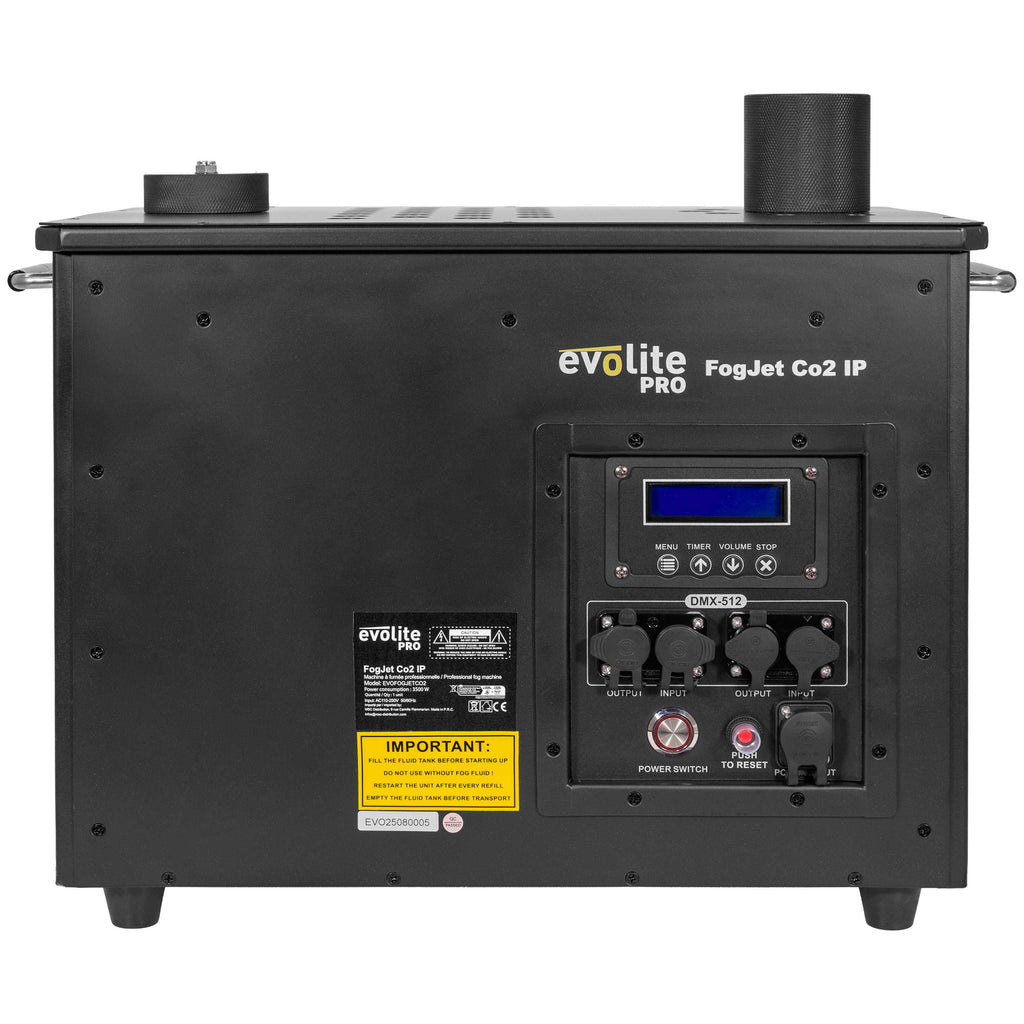

- Touring-Grade Power Connection: TRUEOne power cable included for secure and professional connections.
- Built-In Circuit Breaker: Integrated 20A/250V protection for safe operation in demanding environments.
Specifications
| Specification | Details |
|---|---|
| Brand | Evolite Pro |
| Model | FogJet Co2 IP |
| Effect Type | CO2-style jet fog machine |
| IP Rating | IP54 (outdoor splash & dust resistant) |
| Smoke Projection Height | Up to 15 metres |
| LED Array | 39 × 8W RGB LEDs |
| Heater Power | 3500W |
| Warm-Up Time | Approx. 7 minutes |
| DMX Channels | 5 or 11 channels |
| Ejection Direction | Vertical or 45° angle |
| Fluid Tank Capacity | 4.5 litres |
| Fluid Consumption | 8 mL/sec |
| Compatible Fluid | Evolite FogJet Co2 fluid only |
| Circuit Breaker | 20A / 250V |
| Mains Input | 220–240V, 50/60Hz |
| Max Power Consumption | 3500W |
| Power Connector | TRUEOne (cable included) |
| Dimensions (W × H × D) | 550 × 420 × 440 mm |
| Weight | 33.2 kg |
| Warranty | 3 years |
Performance and User Experience
The Evolite Pro FogJet Co2 IP is built for show producers who need maximum stage impact with outdoor-ready reliability. Its thick, fast-dissipating smoke columns deliver the same dramatic look as CO2 cannons, while the integrated RGB LED system adds vibrant colour that can be programmed and synchronised with your lighting rig. With DMX control, high output power, and flexible vertical or angled operation, it’s ideal for modern stage designs, outdoor touring, and high-energy festival environments where weather resistance and consistent performance are essential.
Q&A Section
Q: Is the FogJet Co2 IP suitable for outdoor use?
A: Yes, it features IP54 protection, making it resistant to dust and splashes for outdoor event use.
Q: How high does the smoke jet reach?
A: It can project dense smoke columns up to 15 metres high.
Q: Does it include built-in lighting?
A: Yes, it includes 39 × 8W RGB LEDs to colour the smoke output for a striking visual effect.
Q: How is it controlled?
A: It supports DMX control with 5 or 11 channel modes for flexible programming.
Q: What fluid does it use?
A: It is designed for use with Evolite FogJet Co2 fluid only.
