SPARK TIDE SF-X5 – IP55 Cold Spark Machine (Up to 5m Spark Effects)
SPARK TIDE SF-X5 – IP55 Cold Spark Machine (Up to 5m Spark Effects)
Overview
The SPARK TIDE SF-X5 by Spark Fabrica is a compact, high-performance cold spark machine engineered to deliver stunning spark effects up to 5 metres in height. Featuring an IP55 waterproof rating, the SF-X5 is built to withstand water jets from any direction and operate reliably in high-humidity or dusty environments. This makes it an excellent choice for outdoor events and demanding production environments. With fast response performance, dual 3-pin and 5-pin DMX connectivity, and a vibrant TFT colour screen for intuitive control, the SPARK TIDE provides a professional, safe, and visually captivating special effects solution for weddings, concerts, stage shows, bars, celebrations and sporting events.
Design and Build Quality

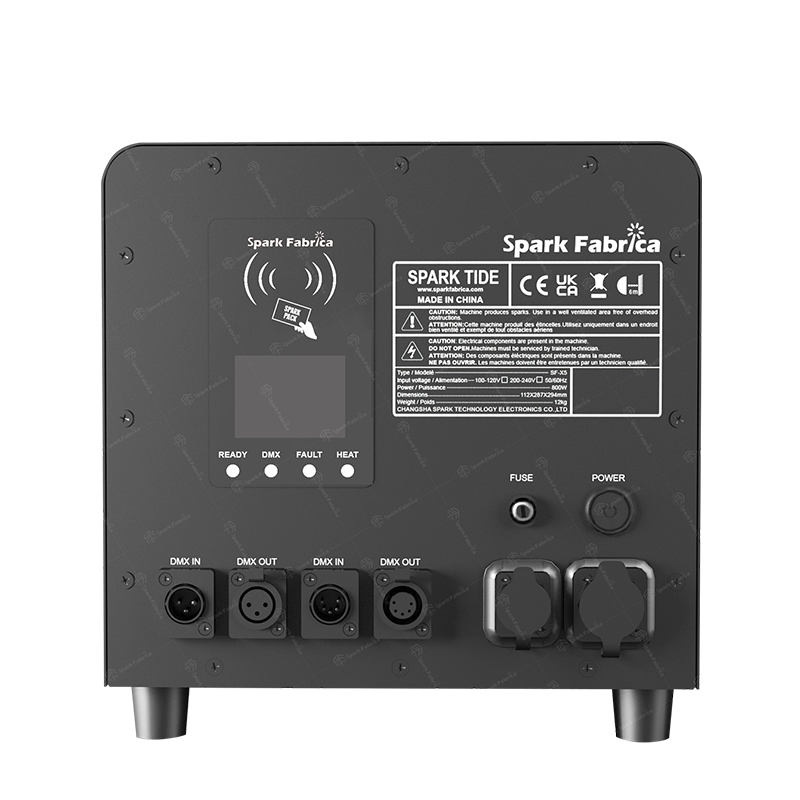

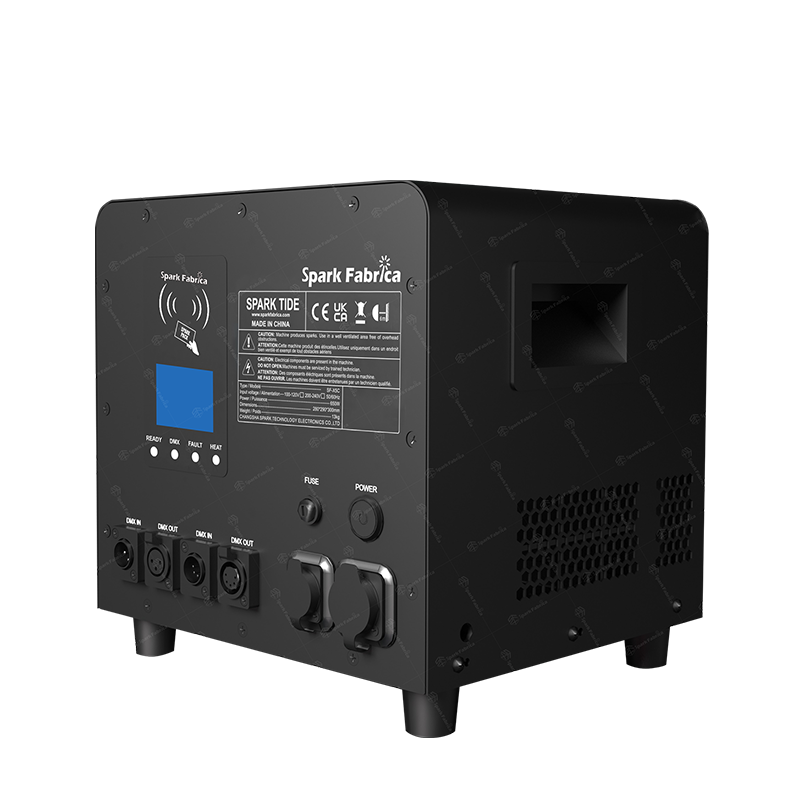

Designed for durability and professional event use, the SPARK TIDE SF-X5 features a robust stainless steel casing and a unique sealing design to help prevent water ingress. While the IP55 protection rating ensures reliable performance for outdoor shows and humid venues, the compact footprint makes it easy to position on stage, around dance floors or within production rigs. The TFT colour display offers clear status visibility and easy adjustment of output settings, while the dual DMX sockets (3-pin and 5-pin) allow seamless integration into a wide range of lighting and effects control setups.
Key Technologies and Features
- 5m Spark Effect Height: Produces spark fountain-style cold spark effects up to 5 metres, ideal for events and stage productions.
- IP55 Waterproof Protection: Built to withstand water jets and moisture exposure for reliable outdoor and high-humidity operation.
- Cold Spark Technology: Creates dramatic spark effects without traditional pyrotechnics, enhancing safety for live events.
- Stainless Steel Casing: Rugged construction designed for frequent setup, touring use and demanding environments.
- Unique Water-Resistant Design: Helps prevent water entry into the unit for improved reliability in challenging conditions.
- Fast Response Output: Rapid cue response for accurate timing in live shows, walk-ons and performance moments.
- TFT Colour Screen: Clear full-colour display for quick setup, monitoring and effect adjustments.
- Dual DMX Connections: Includes both 3-pin and 5-pin DMX sockets for flexible integration with control systems.
- Adjustable Height and Output Density: Height adjustable between 3–5m with selectable output levels for different venue sizes.
- High Capacity Powder Tank: 330g powder capacity supports consistent output performance and extended effect runtime.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Spark Fabrica |
| Model | SF-X5 |
| Product Name | SPARK TIDE |
| Input Voltage & Frequency | AC 100–240V, 50/60Hz |
| Power | 650W |
| Waterproof Rating | IP55 |
| DMX Signal Interface | 3-pin / 5-pin DMX |
| Heating Time | < 5 minutes |
| Powder Tank Capacity | 330g |
| Adjustable Height | 3–5m |
| Height Levels | High / Medium / Low |
| Adjustable Density | Maximum / Moderate / Minimum |
| Powder Consumption (100% Output) | 16–18g / minute |
| Max Continuous Duration | 30 seconds |
| Net Weight | 13 kg |
| Machine Dimensions | 280 × 290 × 300 mm |
| Gross Weight (with 2-Unit Flight Case) | 46 kg |
| Flight Case Size (2 Units) | 750 × 450 × 560 mm |
Performance and User Experience
The SPARK TIDE SF-X5 is designed for event professionals who need powerful visual impact with dependable all-weather performance. With a fast heat-up time under five minutes, adjustable spark height and density controls, it can be tailored to suit a wide range of venues—from intimate wedding stages to outdoor festival platforms. The IP55 waterproof rating ensures reliable operation in humid or dusty conditions and adds peace of mind for outdoor use. With DMX control and professional dual connector support, the SF-X5 integrates smoothly into show control systems for accurate cue timing and synchronised special effects. Its compact size and strong output make it a versatile and practical cold spark solution for production companies, DJs and venue installations.
Q&A Section
Q: How high can the SPARK TIDE SF-X5 produce spark effects?
A: The SF-X5 produces adjustable cold spark effects from 3 metres up to 5 metres.
Q: Is the SPARK TIDE suitable for outdoor use?
A: Yes, it has an IP55 waterproof rating and is designed to operate in humid, dusty or outdoor environments.
Q: How quickly does the SF-X5 heat up?
A: It heats up in under 5 minutes, allowing fast setup and rapid readiness for performance.
Q: Does it support DMX control?
A: Yes, it supports DMX control and features both 3-pin and 5-pin DMX connectors.
Q: Can I adjust the spark effect intensity?
A: Yes, you can adjust both the spark height (High/Medium/Low) and the density (Maximum/Moderate/Minimum) to match your event requirements.
